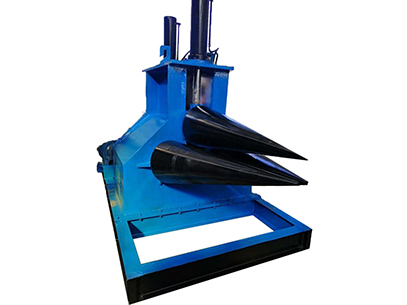

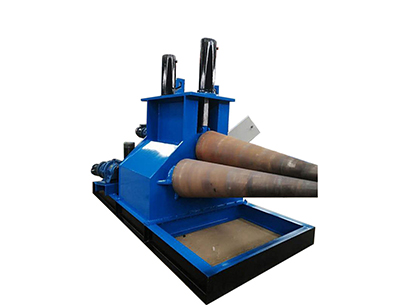

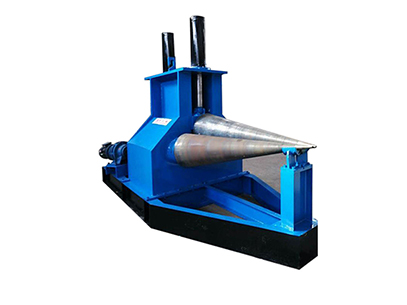

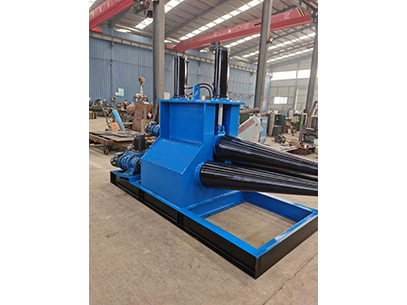

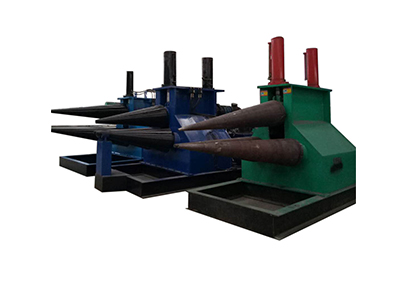

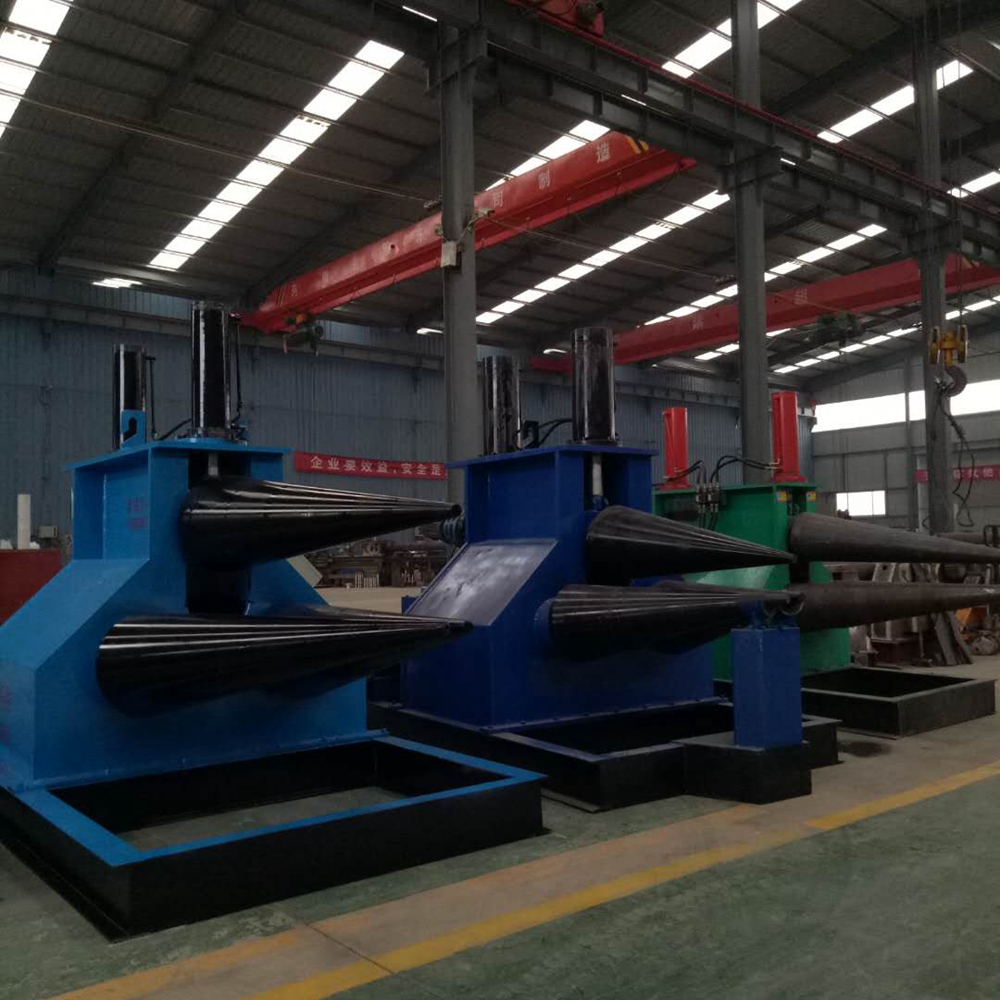

4 rollers Cone rolling bending machine
Technical Parameter

Automatic 4 roller vertical sheet metal plate rolling machine

Automatic 4 roller vertical sheet metal plate rolling machine
Products Parameter
Maximum coil width
2500mm
Working length of roller
2500mm
Maximum coil thickness
25mm
Full load minimum coiling diameter
Φ1000mm
Plate yield limit
245Mpa
Upper roller diameter
380mm
Lower roller diameter
290mm
Rolling speed
about 4.5m / min
Top roller pressure speed
about 40mm / min
Main motor power
30kW
Reducer
JZQ650
Sub motor power
11kw
Reducer
JZQ400
Transmission mode
Worm gear mechanical
Mode of operation Electrical box
handle

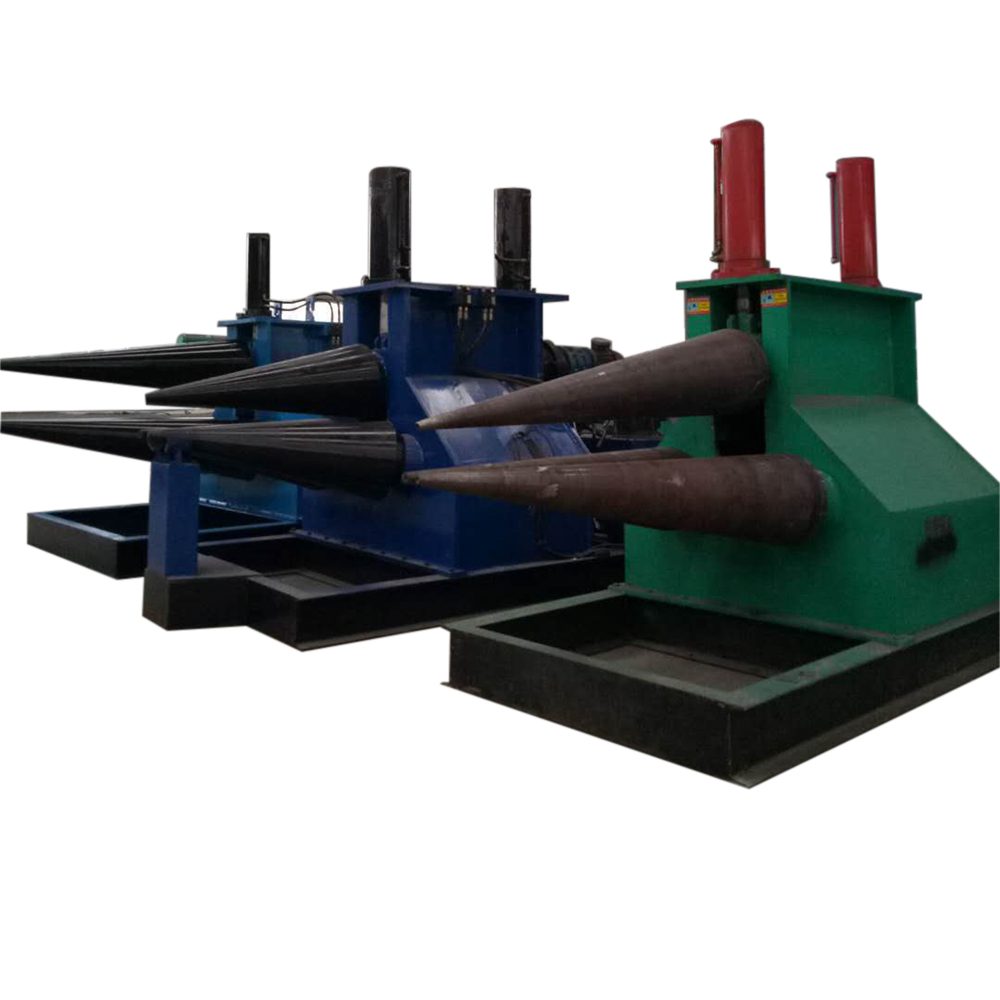

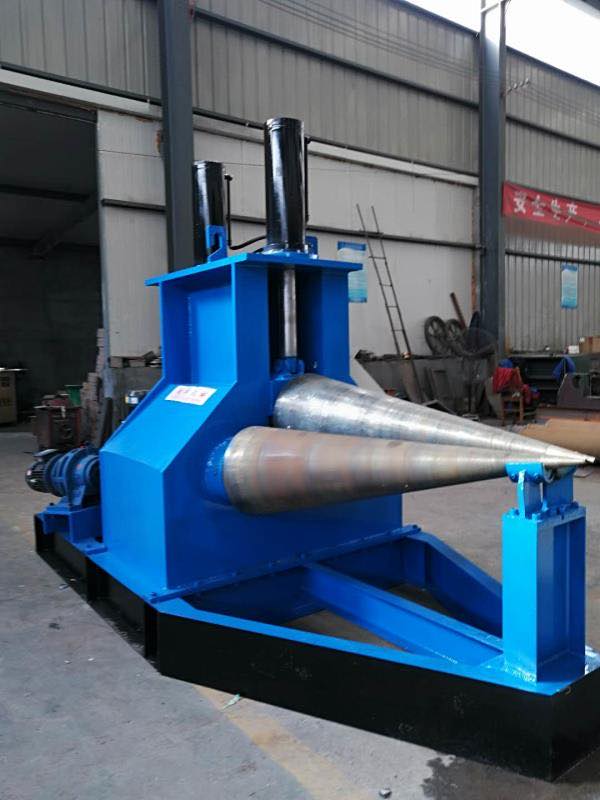

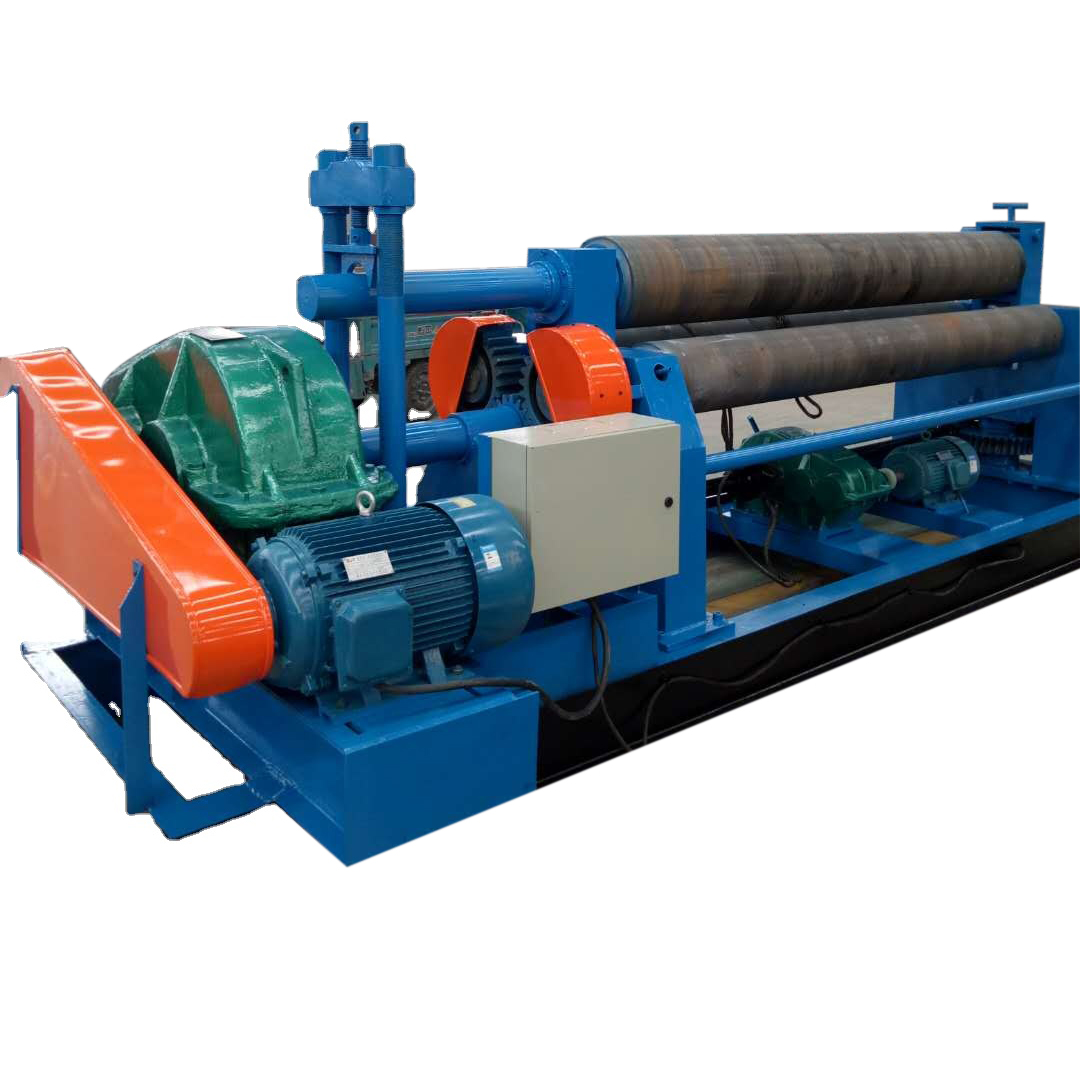

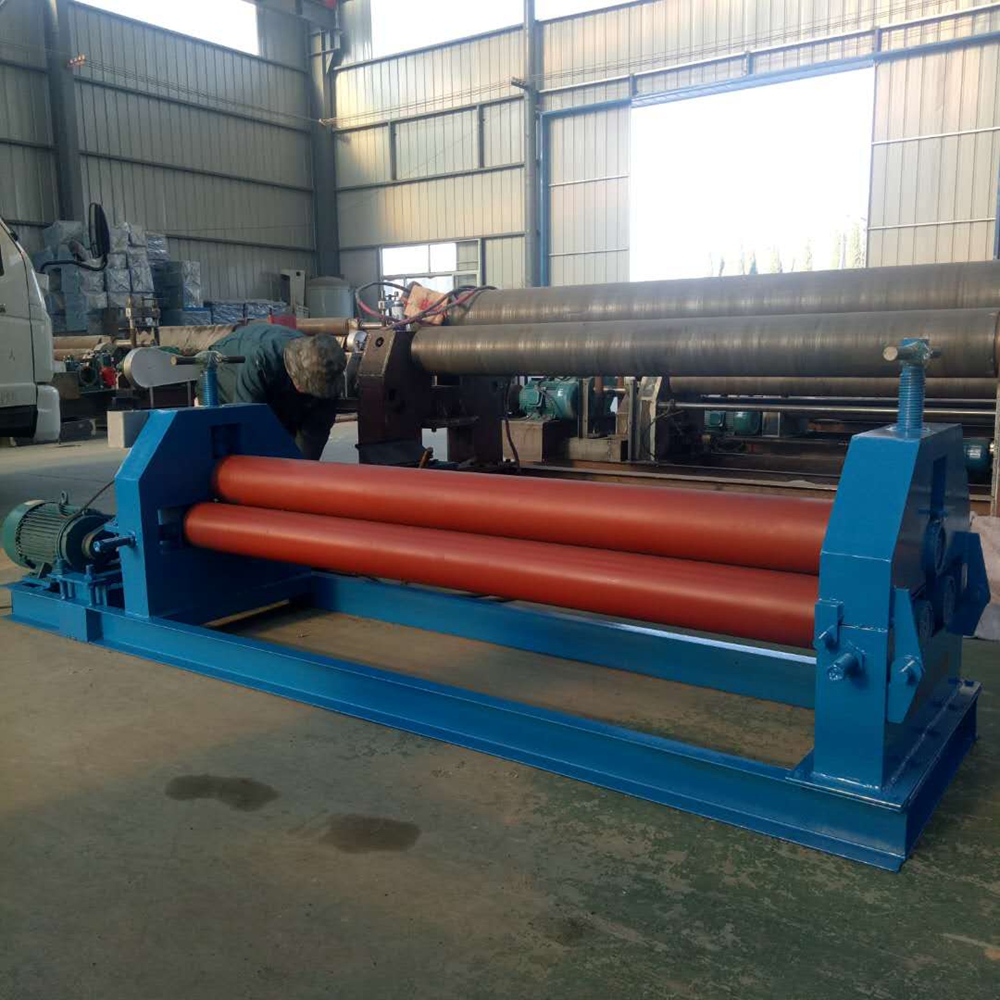

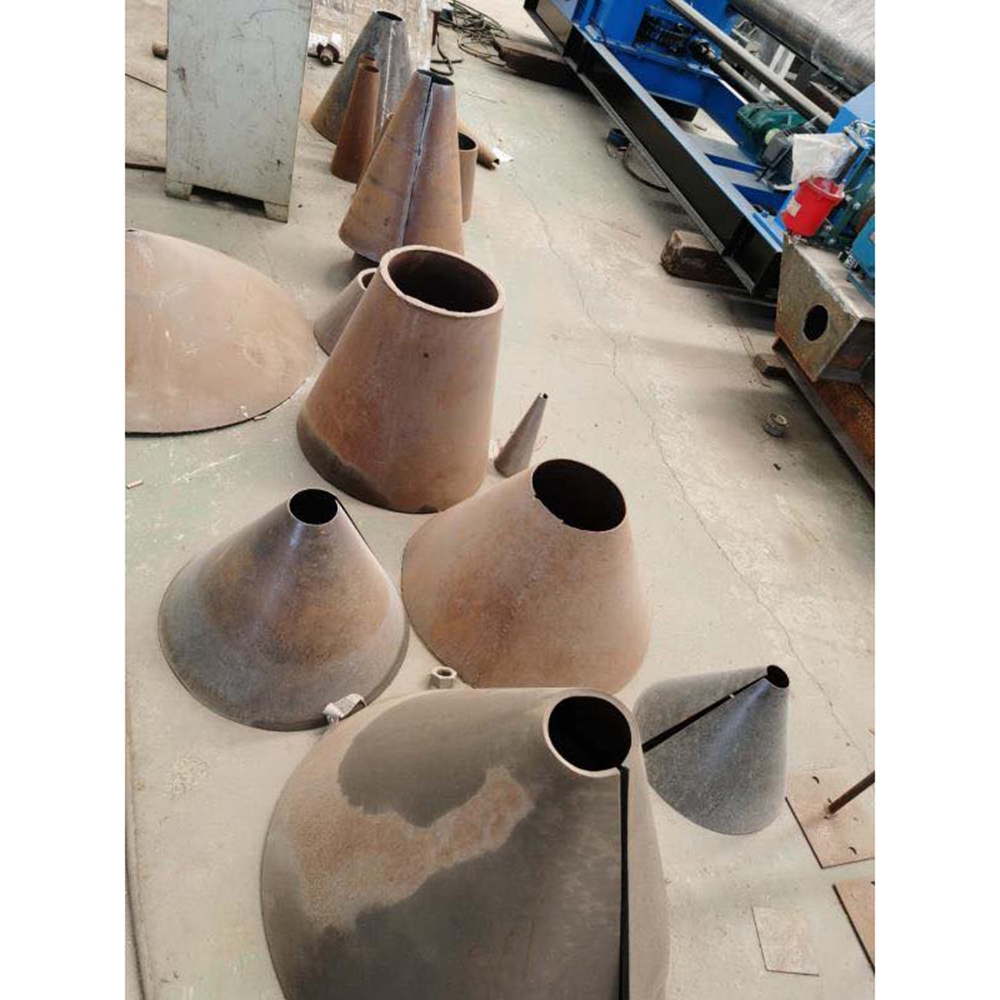

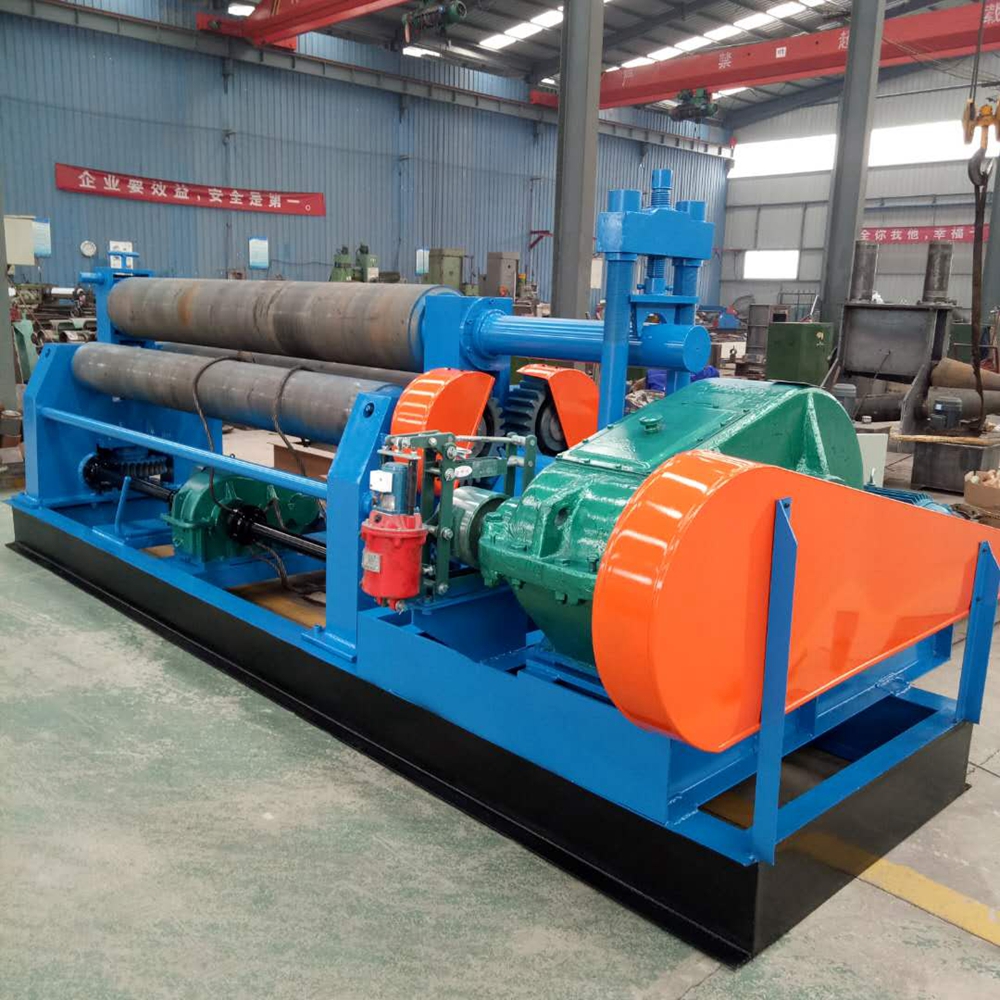

Product Picture
Rolled Curved or Straight, Punched or Slotted

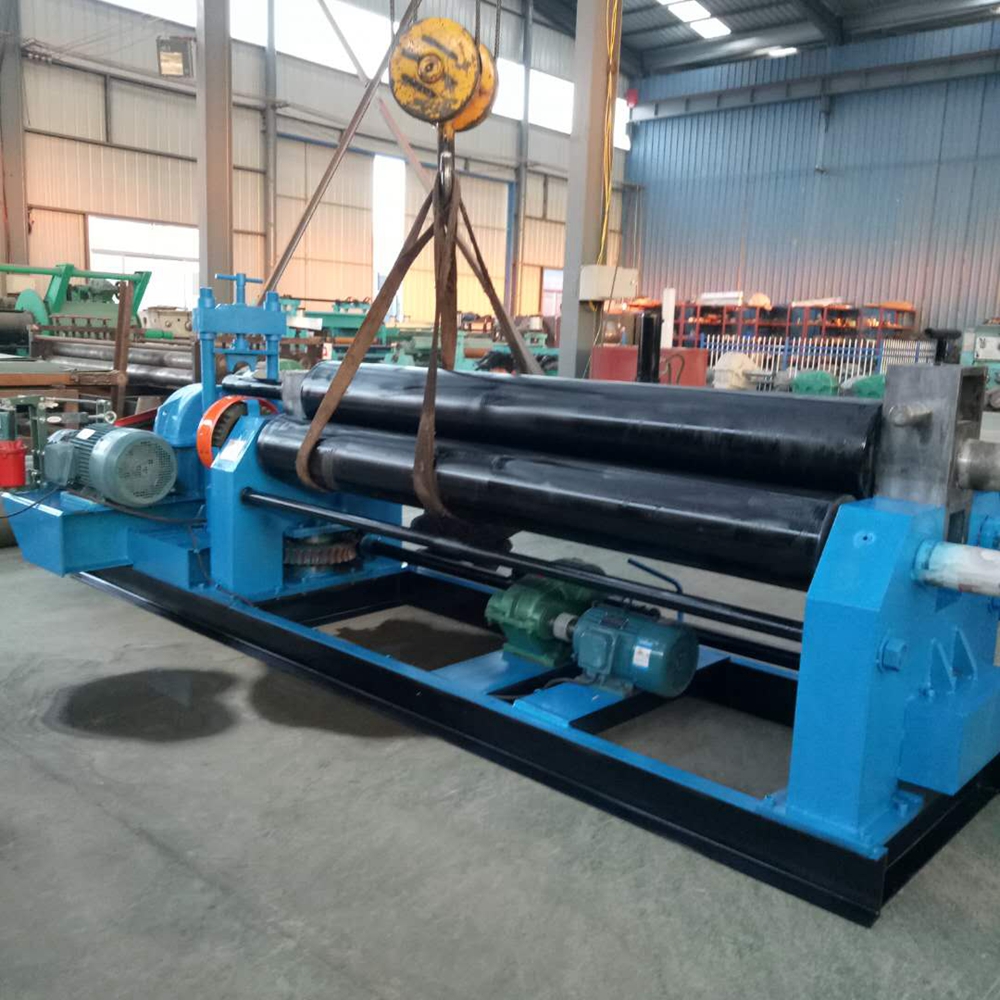

Product Details
Rolled Curved or Straight, Punched or Slotted
