Door frame window steel profile roll forming machine
Technical Parameter

Double rabbet door frame
Door rabbet mullion/Transom
Single rabbet door frame
Single rabbet mullion/Transom
Cased openining door frame
Double egress door frame
Drywall door frame
Shadow line door frame
Standard DELUXE door frame
Kerfed door frame

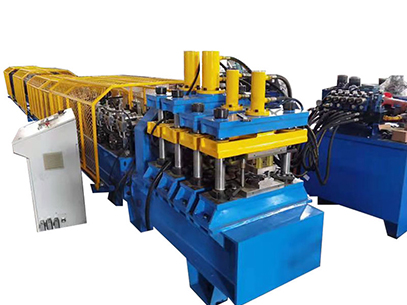

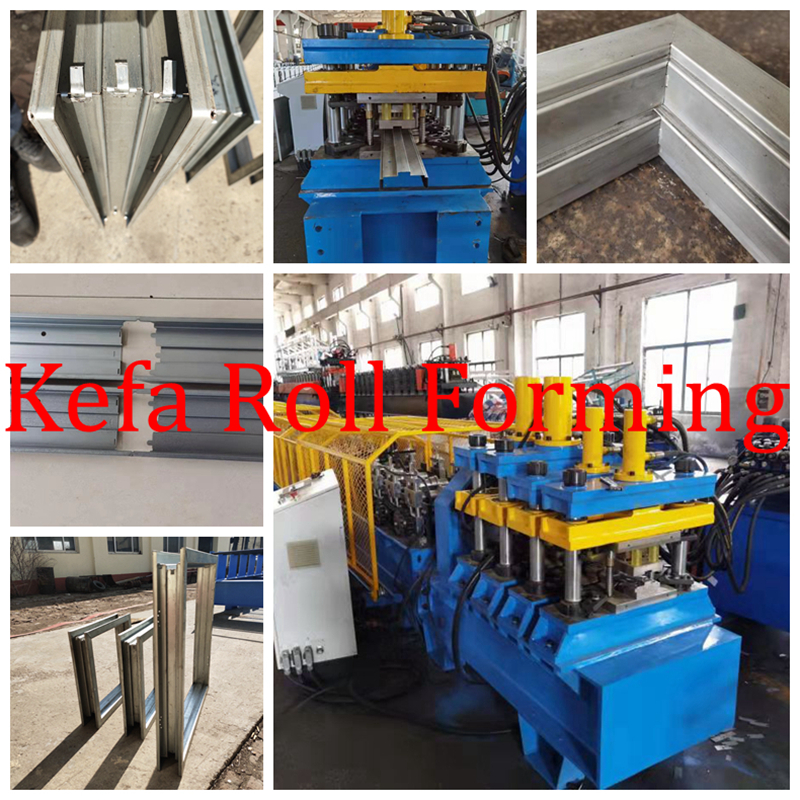

Door frame window steel profile roll forming machine



Door frame window steel profile roll forming machine

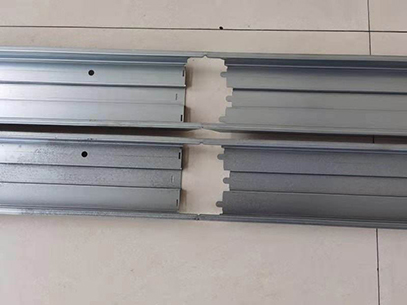

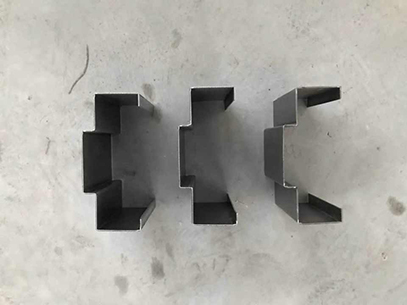

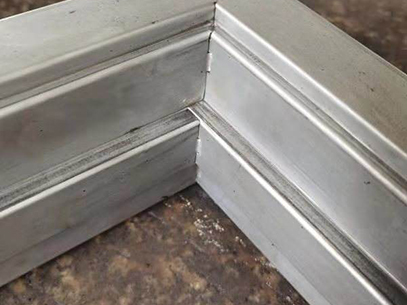

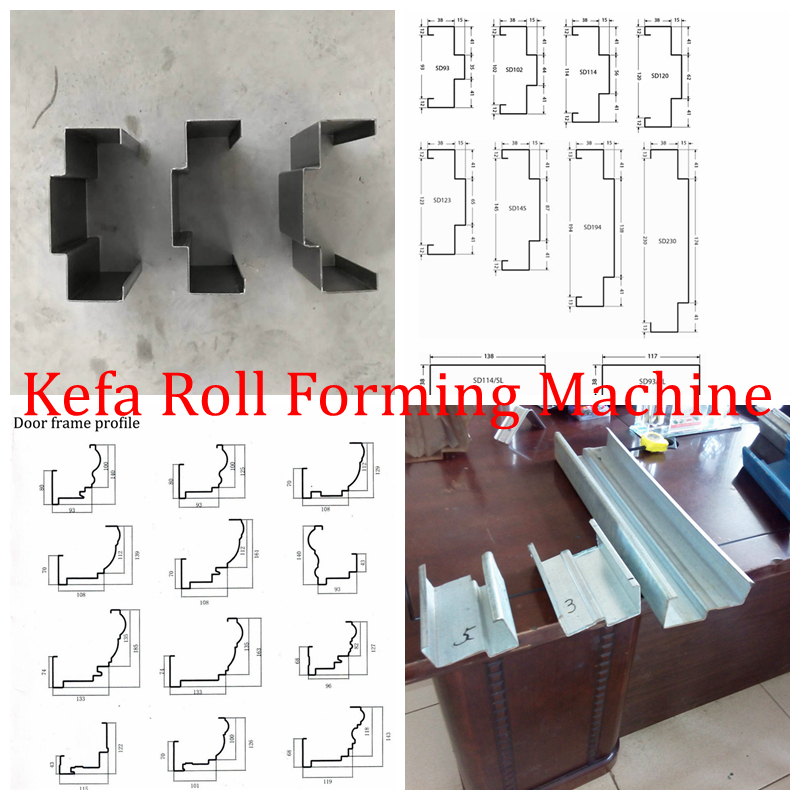

KEFA Door frame roll forming machine is suitable for any kind of metal door frame, for example: fire rated doorsafety doorsliding doorindustry door and interior door etc. Machinable steel material can be zinc-coated steel, galvanized steel, stainless steel. Galvanized door frame machine is more popular during our customers. Thickness range could be 0.6- 1.2mm or 1.2-1.6mm(heavy duty) and Gauge 14/16/18. Here are some profiles widely used of door frame as reference:

Double rabbet door frame
Door rabbet mullion/Transom
Single rabbet door frame
Single rabbet mullion/Transom
Cased openining door frame
Double egress door frame
Drywall door frame
Shadow line door frame
Standard DELUXE door frame
Kerfed door frame

KEFA make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of KEFA Roll Forming Machine will ensure you to obtain perfectly functional profiles.

Door frame window steel profile roll forming machineDoor frame window steel profile roll forming machine

Main Parameters

Item

Name

Description

1

Decoiler

Capacity:5 tons

2

Material

Steel Coil

3

Thickness

0.5-1.6mm

4

Transmission

Chain/Gear/Gearbox

5

Speed

10-15m/min

 6

Roller

Steel with quenched treatment,chromed on the surface

7

Shaft

steel with tempering treatment

8

Cutting type

Hydraulic cutting

9

Cutting material

Cr12 with quenched treatment Hardness58°-62°

10

Welding

Automatic spot welding

11

Control system

PLC

12

Electric brand

Delta,Siemens,Schneider

13

Voltage

380V,50HZ,3PH(or as customers’ request)

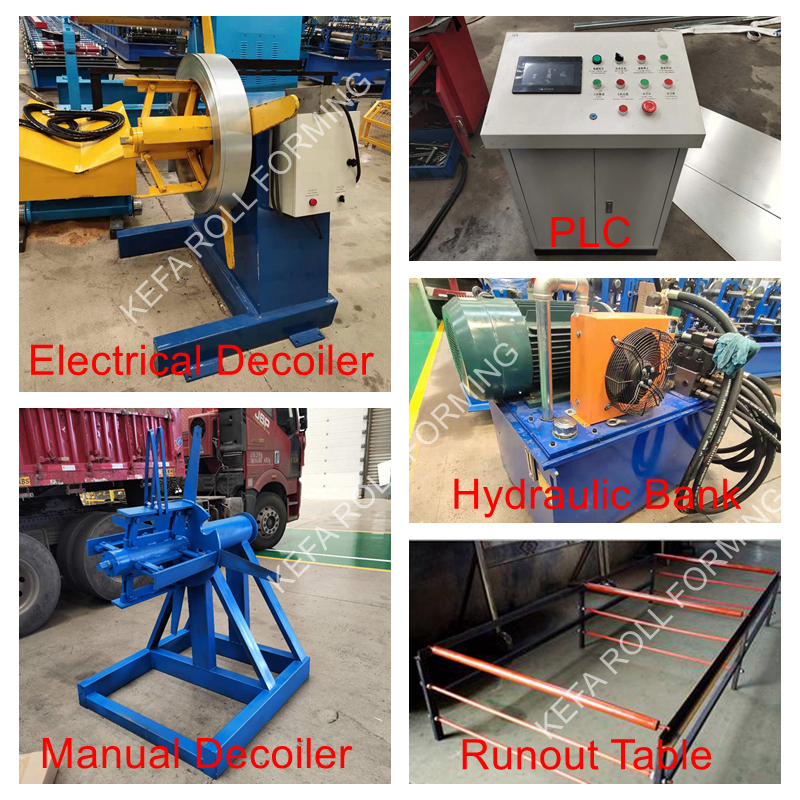

Door frame window steel profile roll forming machine



Sr. No.

Component

Quantity

01

Decoiler 3 Ton

1 Set

02

Pitch Roll,Leveler and Feeder

 1 Set

03

Roll Forming Main Machine

 1 Set

04

Hydraulic Auto Punching Holes

 1 Set

05

Hydraulic Auto Cutting

1 Set

06

Hydraulic Power Bank

1 Set

07

Elc. Control Panel (PLC Base)

1 Set



Door frame window steel profile roll forming machine

Main Features
1.The roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

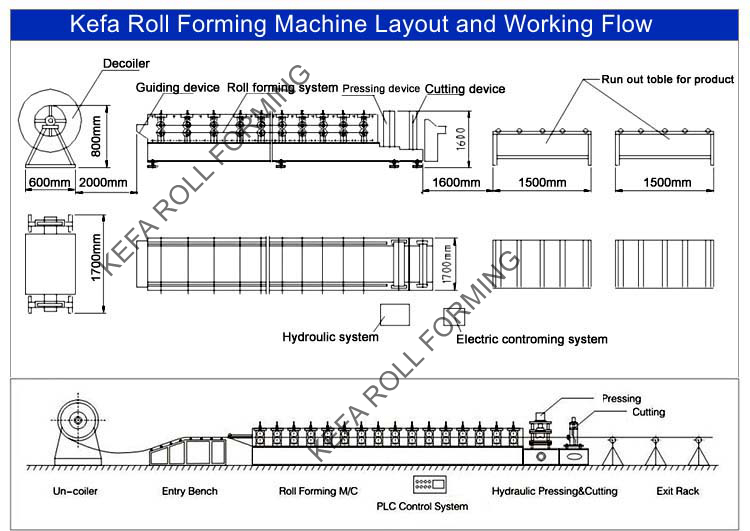

2.Rollforming process:uncoiler, straightening,rollforming, cut to length,Runout table.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.One year warranty.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine can produce one or two profiles.

Door frame window steel profile roll forming machine

Sr. No

Optional Component

Quantity

01

Hydraulic Coil Decoiler

1Set

02

Coil Car

1Set

03

Auto Stacker 20 Ft. Length

1Set

04

Electrical Coil Decoiler

1Set

05

Telescopic Type Machine Guard

1Set



Door frame window steel profile roll forming machine    Botou Kefa Roll Forming Machine Co., Ltd. is a manufacturer specializing in custom cold roll forming equipment and automatic production lines. We can manufacture hundred types roll forming machines,like Door frame machine,K type long span arching roof machine,automobile profile machine,Container house series machine,Steel silo series machine,Chicken cage series machine,Fence series machine,shelf series machine,highway guardrail series machine,coil leveling machine and all kinds of construction profiles.
    Engineers and technicians are rich in experience of designing,developing and manufacturing of machines to provide customers with customized designs. We pay close attention to new trend of technologies.Our products are sold to many countries and regions around the world, and we have established long-term cooperative relationships with customers.

1. Quality Control
A. Every parts of machine is examed carefully without any omit.
B. Welcome to our factory to check machine

2. Installation & Training
A. We supply video to teach buyer how to install and operate machine
B. Welcome customers come to our factory, we are glad to teach you face to face.
C. Our technicians could come to customers’ factory to install machine

3. After-sale service
A. One year warranty for parts and shipment of parts is free.
B. 24hours*365 days technical support online.

Door frame window steel profile roll forming machine

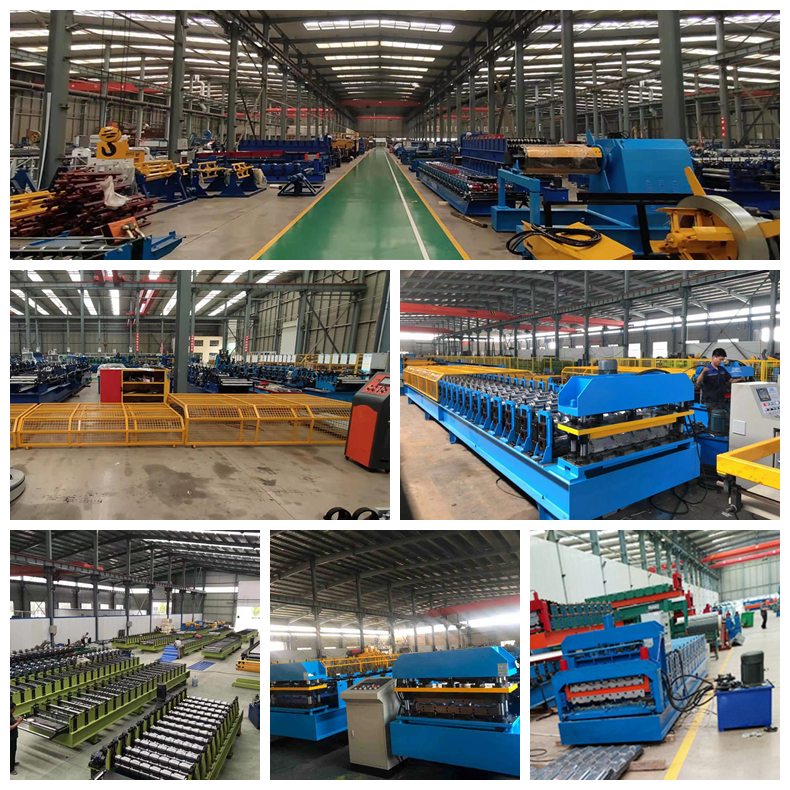

Our machines are working throughout our country and overseas.Few of our reputed clients have in fact given us their repeat orders for their production expansion.
