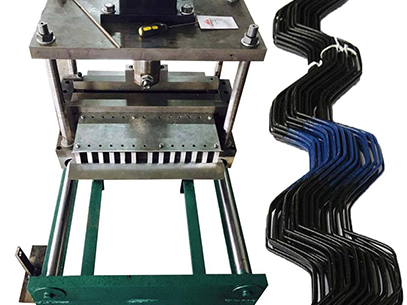

(1) The equipment includes: wire laying part, straightening part, embossing forming, preheating, powder feeding, baking, cooling, slitting cutting equipment.(2) The total power of the equipment is 50KW, three-phase four wire 380V power supply, and the main embossing motor is 2.2kW.
(3) Square wire motor 0.37kw, powder motor 1.5kw, feeding motor 0.2KW, hydraulic motor 1.5kw, heating part 40kW.
(4) The equipment is 22 meters long, 4 meters wide, 1 meter narrow and 1.2 meters high.

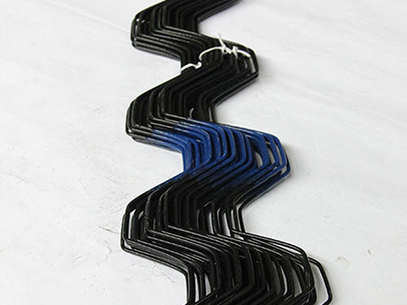

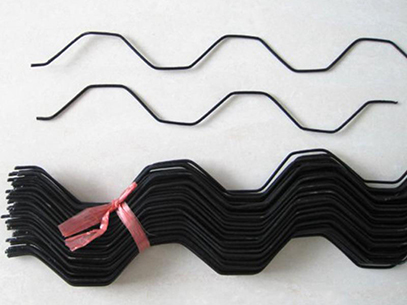

The equipment can produce 20 lock wire at a time, cut off every 16 bends, each 2 meters in length, cut every 45 seconds, and can produce 1600 pieces per hour.

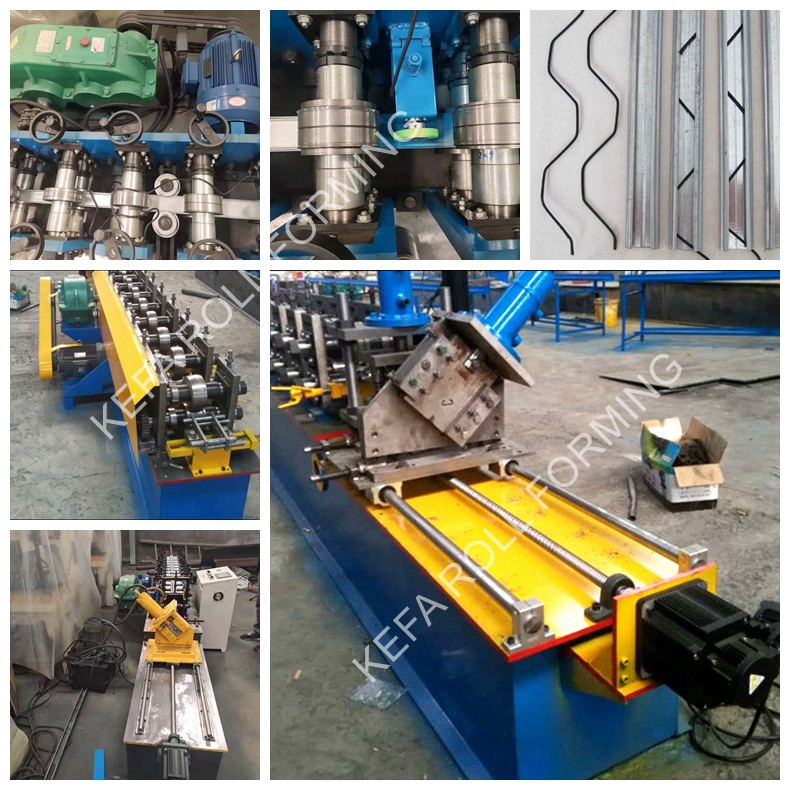

Main parameters of the roll forming machine
Item |
Name |
Description |
1 |
Decoiler |
Capacity:3 tons |
2 |
Forming station |
13 stations |
3 |
Motor power |
3kw |
4 |
Transmission |
Chain/Gear/Gearbox |
5 |
Speed |
10-15m/min |
6 |
Roller material |
45# Steel with quenched treatment,chromed on the surface |
7 |
Shaft material |
45# steel with tempering treatment,40mm diameter |
8 |
Cutting type |
Hydraulic cutting |
9 |
Cutting material |
Cr12 with quenched treatment Hardness58°-62° |
10 |
Hydraulic power |
3 kw |
11 |
Control system |
PLC |
12 |
Electric brand |
Delta,Siemens,Schneider |
13 |
Voltage |
380V,50HZ,3PH(or as customers’ request) |
Sr. No. |
Component |
Quantity |
01 |
Decoiler 3 Ton |
1 Set |
02 |
Pitch Roll,Leveler and Feeder |
1 Set |
03 |
Roll Forming Main Machine |
1 Set |
04 |
Hydraulic Auto Punching Holes |
1 Set |
05 |
Hydraulic Auto Cutting |
1 Set |
06 |
Hydraulic Power Bank |
1 Set |
07 |
Elc. Control Panel (PLC Base) |
1 Set |
Main Features
1.The roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, straightening,rollforming, cut to length,Runout table.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.One year warranty.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine can produce one type profile.
Botou Kefa Roll Forming Machine Co., Ltd. is a manufacturer specializing in custom cold roll forming equipment and automatic production lines. We can manufacture hundred types roll forming machines,like Door frame machine,K type long span arching roof machine,automobile profile machine,Container house series machine,Steel silo series machine,Chicken cage series machine,Fence series machine,shelf series machine,highway guardrail series machine,coil leveling machine and all kinds of construction profiles.
Engineers and technicians are rich in experience of designing,developing and manufacturing of machines to provide customers with customized designs. We pay close attention to new trend of technologies.Our products are sold to many countries and regions around the world, and we have established long-term cooperative relationships with customers.
1. Quality Control
A. Every parts of machine is examed carefully without any omit.
B. Welcome to our factory to check machine
2. Installation & Training
A. We supply video to teach buyer how to install and operate machine
B. Welcome customers come to our factory, we are glad to teach you face to face.
C. Our technicians could come to customers’ factory to install machine
3. After-sale service
A. One year warranty for parts and shipment of parts is free.
B. 24hours*365 days technical support online.
Our machines are working throughout our country and overseas.Few of our reputed clients have in fact given us their repeat orders for their production expansion.
Established in 2008 year,Kefa is a professional manufacturer specializing in the developing and manufacturing of cold roll forming machine,Silo Making Machine,Curve Profile Roll Forming Machine.
1.Construction Roll Form Machine:
Roof And Wall Panel,Floor & Roof Deck,Purlines,Elevators,Metal Building Beam,Metal Framework,Drywall Stud and Track,False Ceilings,Door & Window Frame,Door Skin,Shutter Door,C/Z/U/L Shaped Steel,Roof Flashings Roll,Arch Roof Panel,Container House
2.Automotive Roll Form Machine:
Carriage Panel,Bicycle/Motorbycle Wheel Rim,Tanker/Trailer Fender,Body Sides.
3.Agricultural Roll Form Machine:
Steel Silos,Greenhouse Pipe/Channels,Conveyor Cover,Layer Cage Frame,Vineyard Post,Corrugated Sheet Curver,
4.Industry Roll Form Machine:
Fence,Leveling/Slit & Cut to Length Line,sheet rolling bending,Cone rolling bending,Lock hoop,Pipe Arch Curve,Expansion Joint,Hand rail,Guard rail,pipe milling
5.Energy & Electricals
Solar Panels,Conduits,Light Fixtures,Pylons,Cable Trays,Cabinets,Box.
6.Logistics Roll Form Machine
Metal Containers,Upright,Shelving,Mezzanine Floors,Walkways,Scaffolding,Cold Rooms,Pallet Rack,
KEFA has been engaged in the metal roll forming industry for many years and devoted to developing some steel structure machines with a professional technology and reasonable price. In particular, we can provide professional service, high quality, through design and installation. At KEFA, our experience is our advantage.
