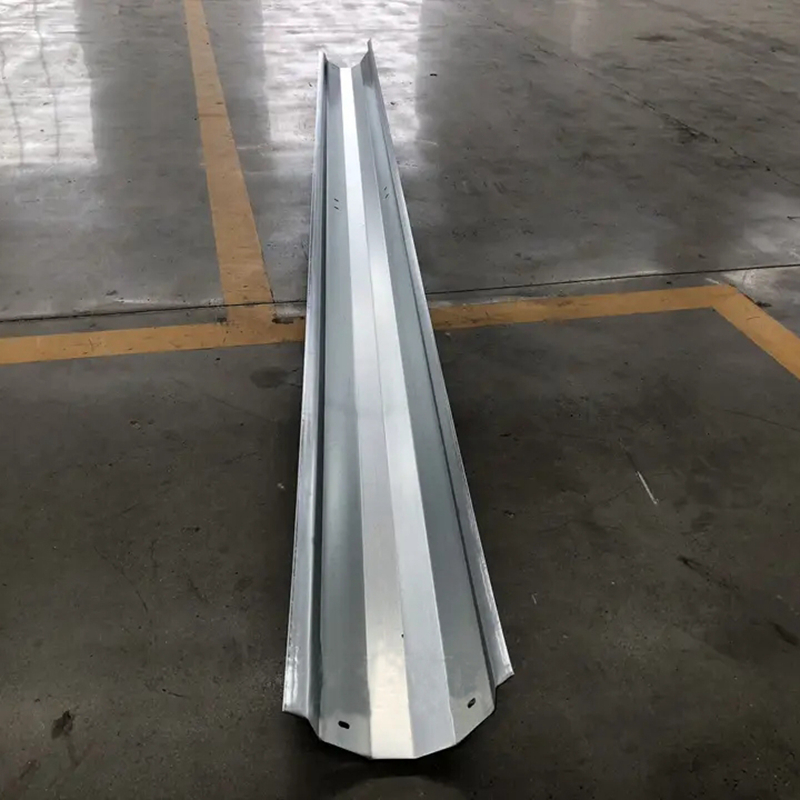

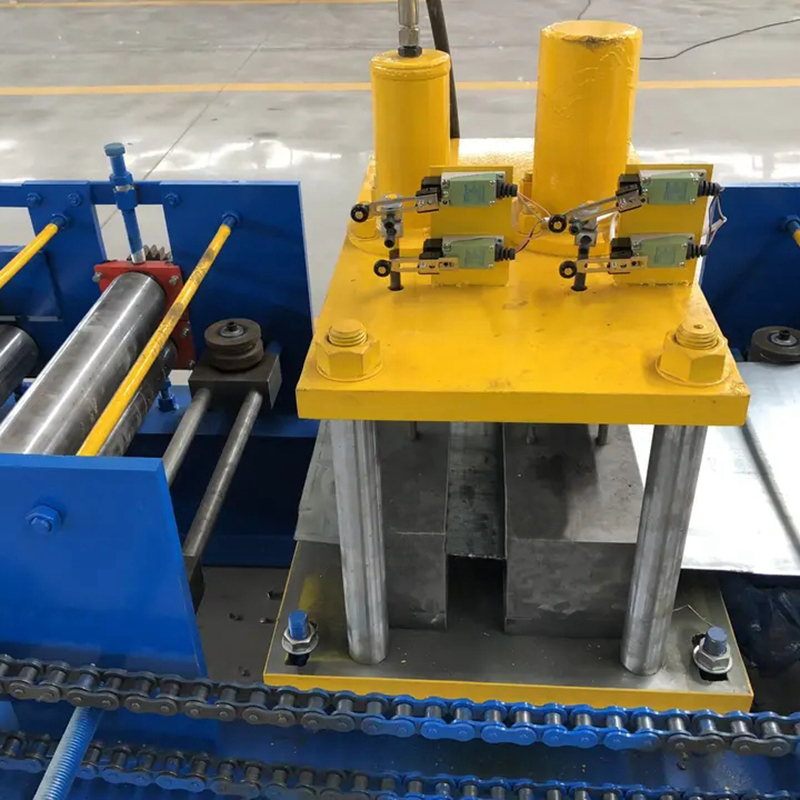

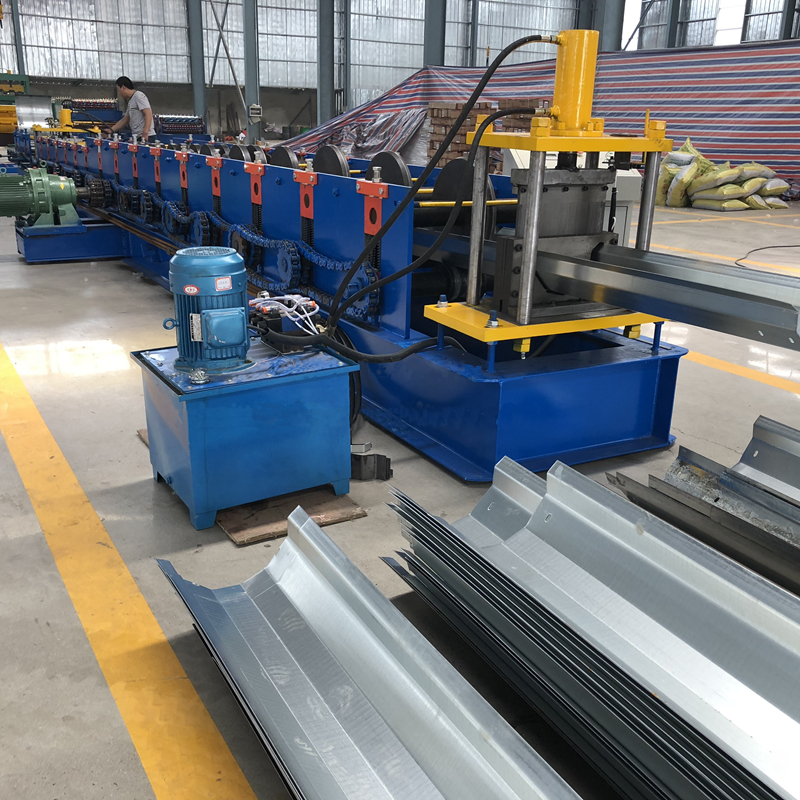

Green House Water Gutter Roll Forming Machine is full automatic line including leveling and feeding device ,roll forming machine ,punching device ,straightening device and hydraulic cutting system .we can customized machine according to your drawing ,welcome contact to know more .
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm ;

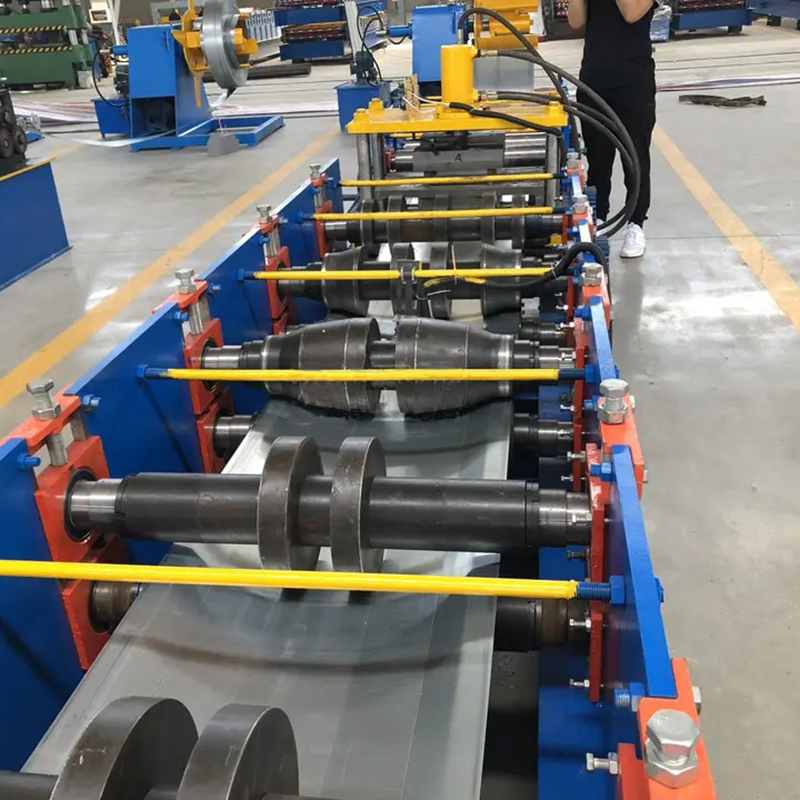

Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm
Shafts Diameter=ф65mm,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor=11KW , Frequency speed control
All the screw bolts with grade 8.8
Real forming speed 12-15 m/min(Not include cutting time)
| Machine Dimension | 1400mm×950mm×750mm |
| Power | 1.5kw |
| Number of forming rows | 5 rows |
| Spacing | 210mm |
| Depth | 23mm |
| Effective Width | 840mm |
| Sheet thickness | Below 1.0mm |
| Roll material of bending machine | 45# steel , hardness hr 55°- 57° |
| Weight | About 550Kg |
| Shaft diameter | ¢70 solid shaft |
| Rectifying deviation | Rubber shaft control at feeding port to prevent deviation |
| Bending arch | Adjustable as require |
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine’s warranty period is 12months,if the broken parts can’t be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
