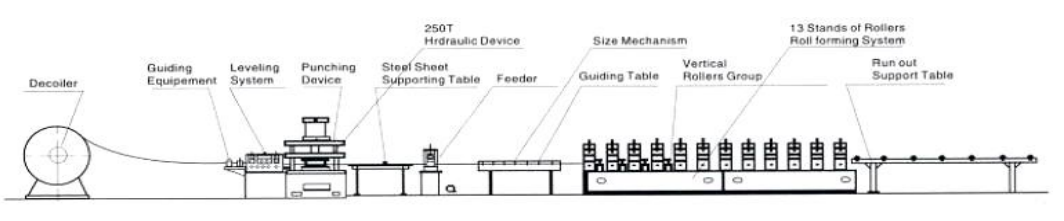

Working flow of two waves highway express guardrail fence crash machine:
Technical parameters:
| Product | |
| Material | Carbon steel, cold rolled steel, galvanized steel |
| Thickness | 2.5-4 mm |
| Feeding width | 490 mm |
| Cover width | 312 mm |
| Coil inner diameter | 508 mm |
| Decoiler | |

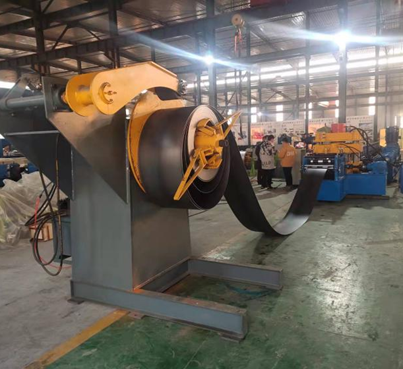

| Working type | Hydraulic type |
| Loading capacity | 10 Tons |
|
Equipped with world famous brand “Schneider” electrical parts, more safety and reliable.
|
|
|
Can stop the rotate of coil immediately when required, avoid unnecessary coil output.
|
|
| Fast braking, more safer. | |
|
The matching high-speed forming machine needs faster uncoiling speed, and the pneumatic brake can provide greater braking force. Customers need to be equipped with their own compressed air source.
|
|
|
Four arms expanding device with sliding block can provide more powerful force to fixing the coil, The synchronous action can avoid the deformation of the coil.
|
|
|
The block installed on the the arms can suit the coils with bigger inner diameter.
|
|
|
Equiped with high quality solenoid valve,it has the advantages of large flow, sufficient power and low failure rate.
The oil tube is bundle arrangement with machine line, with pretty appearance and safer operation.
|
|
 |
|
| Alignment Guiding Roller |
| 4 rollers on both side to control the feeding of the raw material, to avoid the raw material being left and right, or up and down, and use the screw to adjust. |
|
9 Rollers Leveling Machine
|
|
The diameter of the roller is dia. 117mm,material hardness is 40CrHRC 48-52 degree, the width of supplier table 600mm,the thickness of flat panel 2-4 mm, the power of motor 15kw,the K97 reducer, levering speed:15-22m/min.
|
 |
|

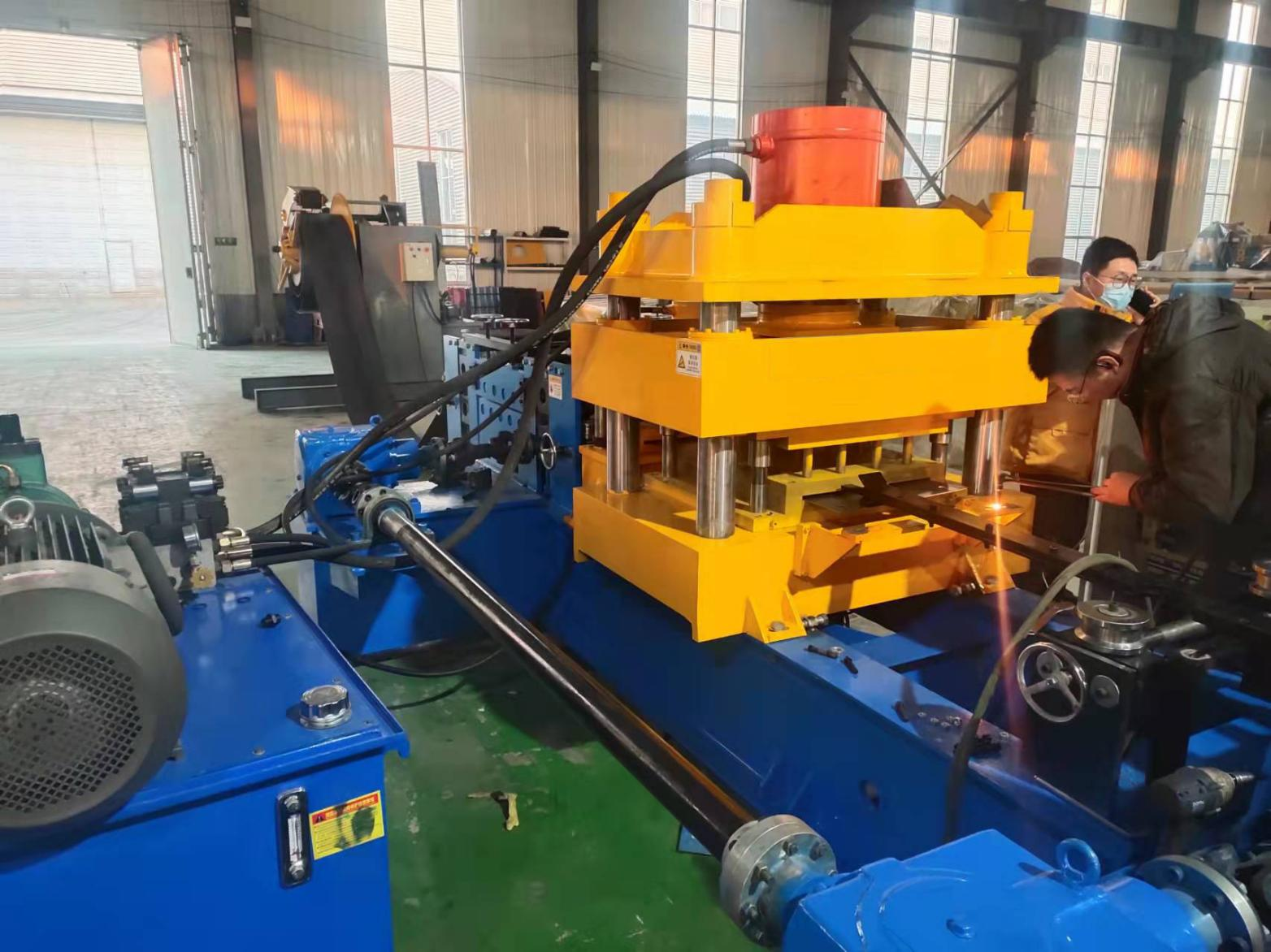

250T/ 315T Hydraulic Press
|
|
|
Hydraulic motor power: 22kw, YL-32-250 for #82-312; YL-32-315 for#83-506. We will design the punch as the requirement to ensure the flotsam will flow out the hydraulic machine automatically.
The material of the punching head & cutting mould is: Cr12mov
|
|
 |

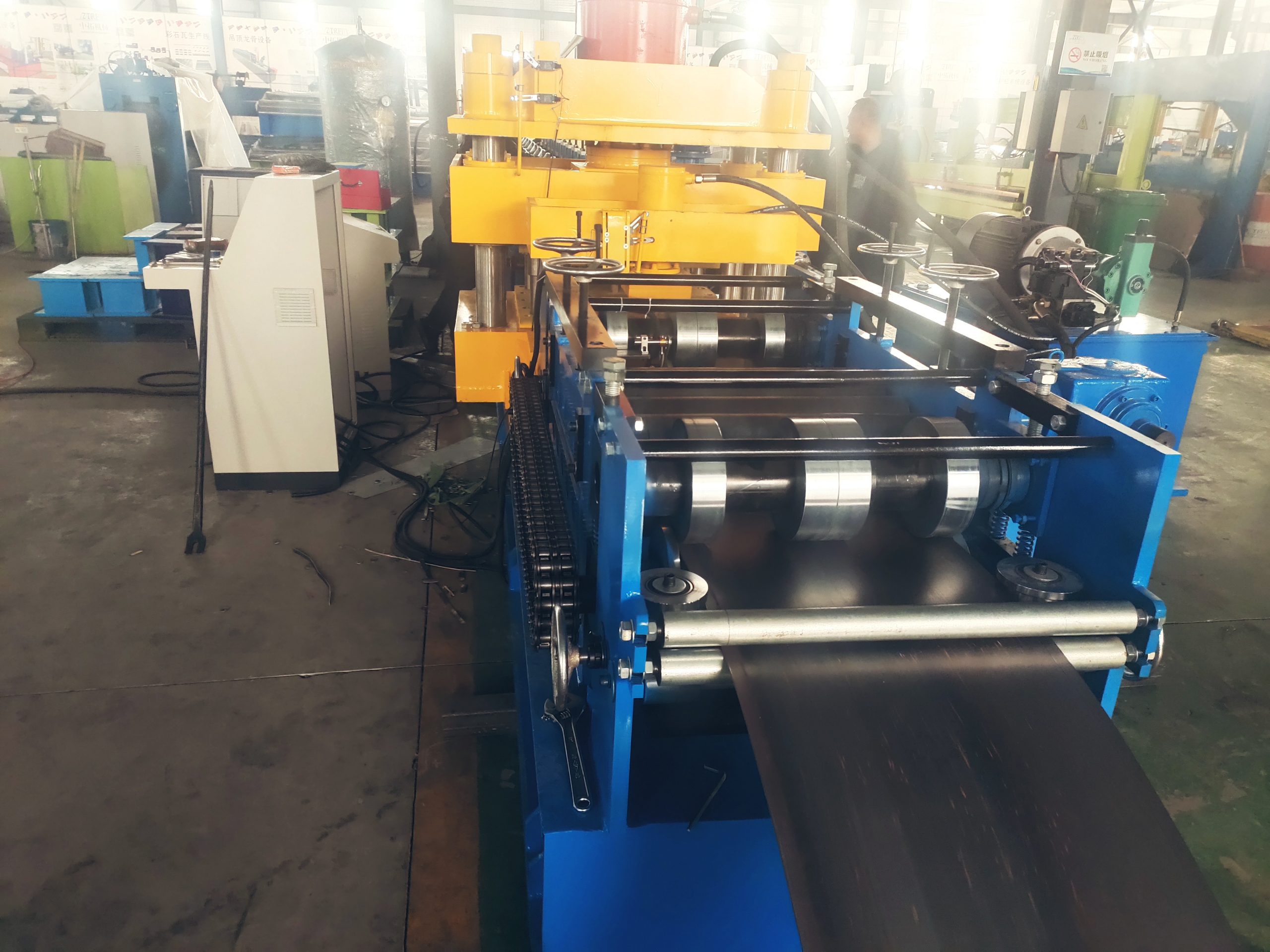

| Main roll former | |
| Roller material | GCr 15 (HRC55℃~60℃) |
| Main motor power | 22 KW* 2 |
| Roller station | 15 roller stations |
| Roll forming speed | 0-12 m/min |
|

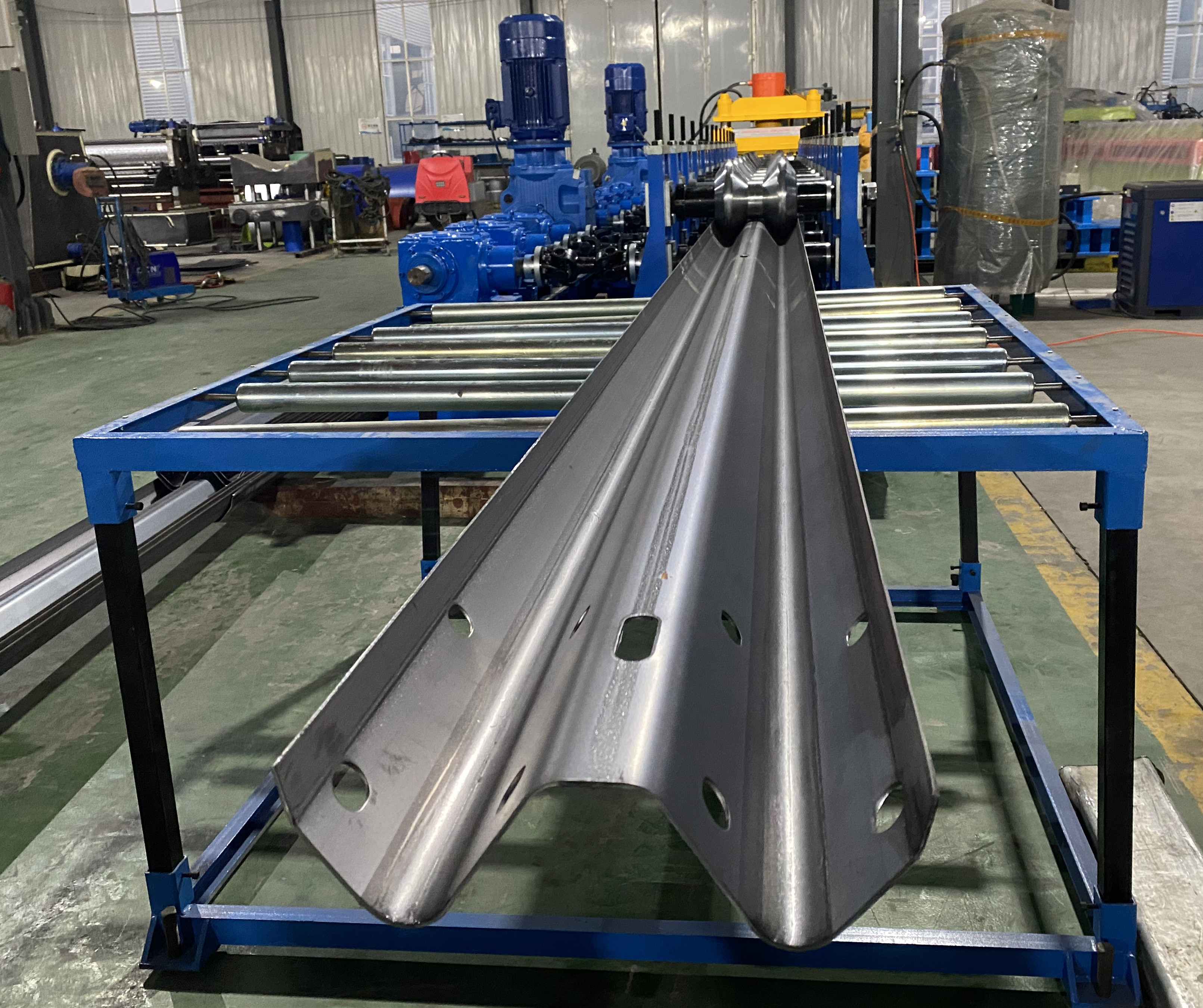

GY250S series in the style of door structure, rolling metal band (material: Q235) thickness(1-4mm), the diameter of the axis of roller(dia.80mm), the rolling speed (15-20m/min), approximately 2-2.5 pcs of guard rail panel which length is at 4320mm.The height of the material: 90mm , the material of main roller:Gcr15(HRC55-60), the guard rail panel is passed the JT/T281-2007 standard of the traffic department for the guard rail panel.
Main transport: 22KW*2, K127 reducer. |
|
 |
|

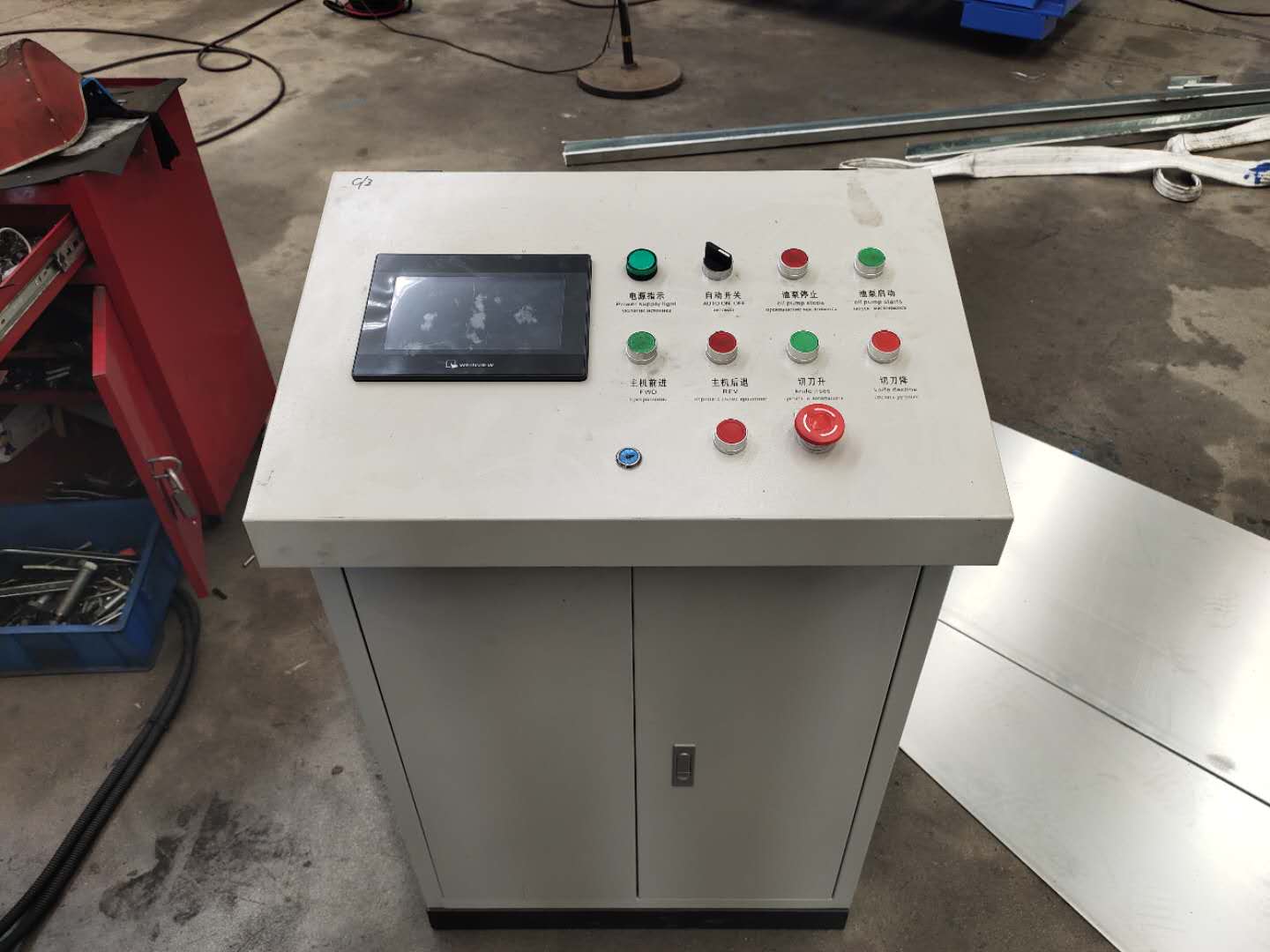

| PLC control system | |
| PLC brand | Siemens |
| Frequency brand | Siemens |
| Screen type | Touch screen with Siemens brand |
| Screen language | English/ Chinese or as your request |
| Cutting& punching demand | Yes |
| Highway guardrail length set up | Yes |
| Quantity set up | Yes |
 |
|

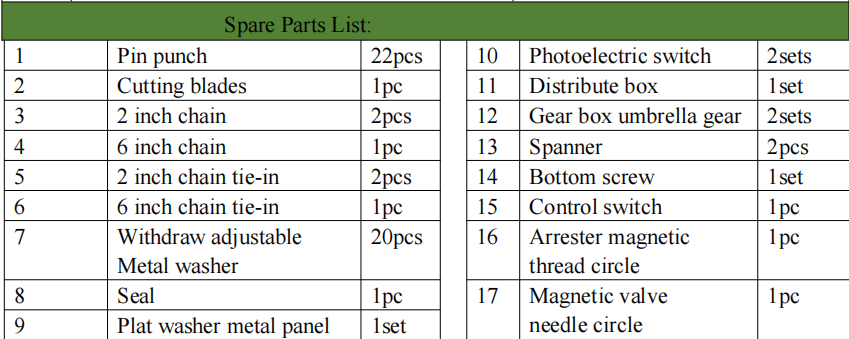

| Support table |
| 5 m length with square pipe welded |
 |
