Shelf post machine
Technical Parameter

Super Market Storage Shelf Upright Pillar Rack Roll Forming MachineSuper Market Storage Shelf Upright Pillar Rack Roll Forming MachineMain Parameters

Item

Name

Description

1

Decoiler

Capacity:5 tons

2

Material

Steel Coil

3

Thickness

0.5-2.5mm

4

Transmission

Chain/Gear/Gearbox

5

Speed

10-15m/min

 6

Roller

Steel with quenched treatment,chromed on the surface

7

Shaft

steel with tempering treatment

8

Cutting type

Hydraulic cutting

9

Cutting material

Cr12 with quenched treatment Hardness58°-62°

10

Welding

Automatic spot welding

11

Control system

PLC

12

Electric brand

Delta,Siemens,Schneide

13

Voltage

380V,50HZ,3PH(or as customers’ request)

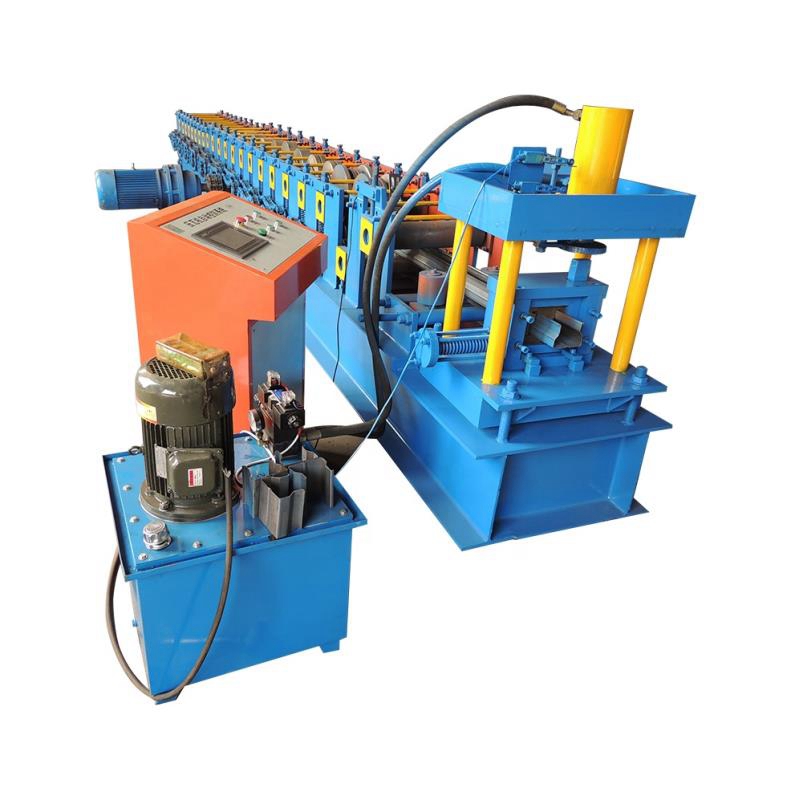

Super Market Storage Shelf Upright Pillar Rack Roll Forming Machine

Sr. No.

Component

Quantity

01

Decoiler 3 Ton

1 Set

02

Pitch Roll,Leveler and Feeder

 1 Set

03

Roll Forming Main Machine

 1 Set

04

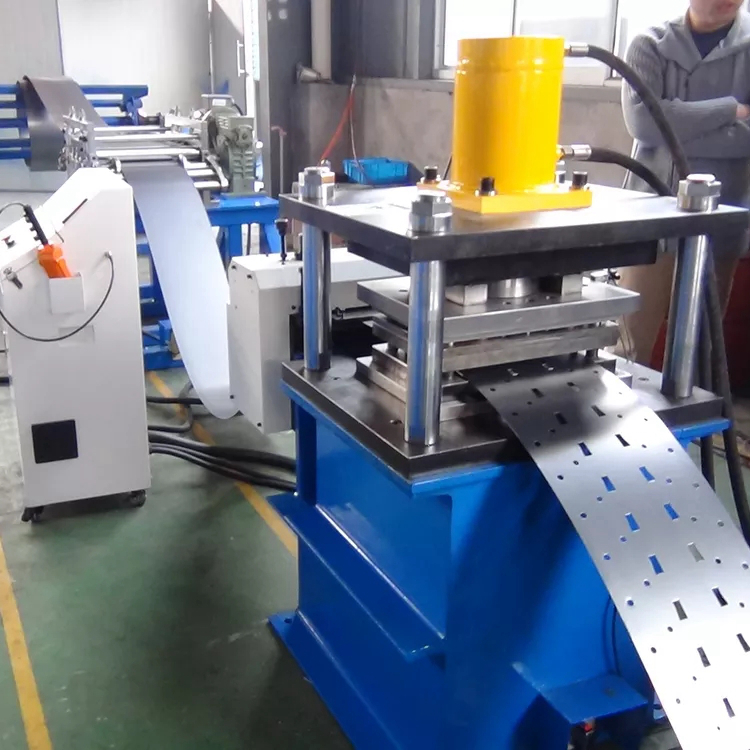

Hydraulic Auto Punching Holes

 1 Set

05

Hydraulic Auto Cutting

1 Set

06

Hydraulic Power Bank

1 Set

07

Elc. Control Panel (PLC Base)

1 Set

Super Market Storage Shelf Upright Pillar Rack Roll Forming MachineSuper Market Storage Shelf Upright Pillar Rack Roll Forming MachineSuper Market Storage Shelf Upright Pillar Rack Roll Forming MachineSuper Market Storage Shelf Upright Pillar Rack Roll Forming MachineMain Features
1.The roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, straightening,rollforming, cut to length,Runout table.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.One year warranty.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine can produce one or two profiles.

Sr. No

Optional Component

Quantity

01

Hydraulic Coil Decoiler

1Set

02

Coil Car

1Set

03

Auto Stacker 20 Ft. Length

1Set

04

Electrical Coil Decoiler

1Set

05

Telescopic Type Machine Guard

1Set

Super Market Storage Shelf Upright Pillar Rack Roll Forming Machine
Super Market Storage Shelf Upright Pillar Rack Roll Forming MachineSuper Market Storage Shelf Upright Pillar Rack Roll Forming MachineSuper Market Storage Shelf Upright Pillar Rack Roll Forming Machine1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine’s warranty period is 12months,if the broken parts can’t be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
