C Section Bracing Omega Storage Rack Upright Post Roll Forming Machine
Main Parameters
|
Item |
Name |
Description |
|
1 |
Decoiler |
Capacity:5 tons |
|
2 |
Material |
Steel Coil |
|
3 |
Thickness |
0.5-2.5mm |
|
4 |
Transmission |
Chain/Gear/Gearbox |
|
5 |
Speed |
10-15m/min |
|
6 |
Roller |
Steel with quenched treatment,chromed on the surface |
|
7 |
Shaft |
steel with tempering treatment |
|
8 |
Cutting type |
Hydraulic cutting |
|
9 |
Cutting material |
Cr12 with quenched treatment Hardness58°-62° |
|
10 |
Welding |
Automatic spot welding |
|
11 |
Control system |
PLC |
|
12 |
Electric brand |
Delta,Siemens,Schneide |
|
13 |
Voltage |
380V,50HZ,3PH(or as customers’ request) |
|
Sr. No. |
Component |
Quantity |
|
01 |
Decoiler 3 Ton |
1 Set |
|
02 |

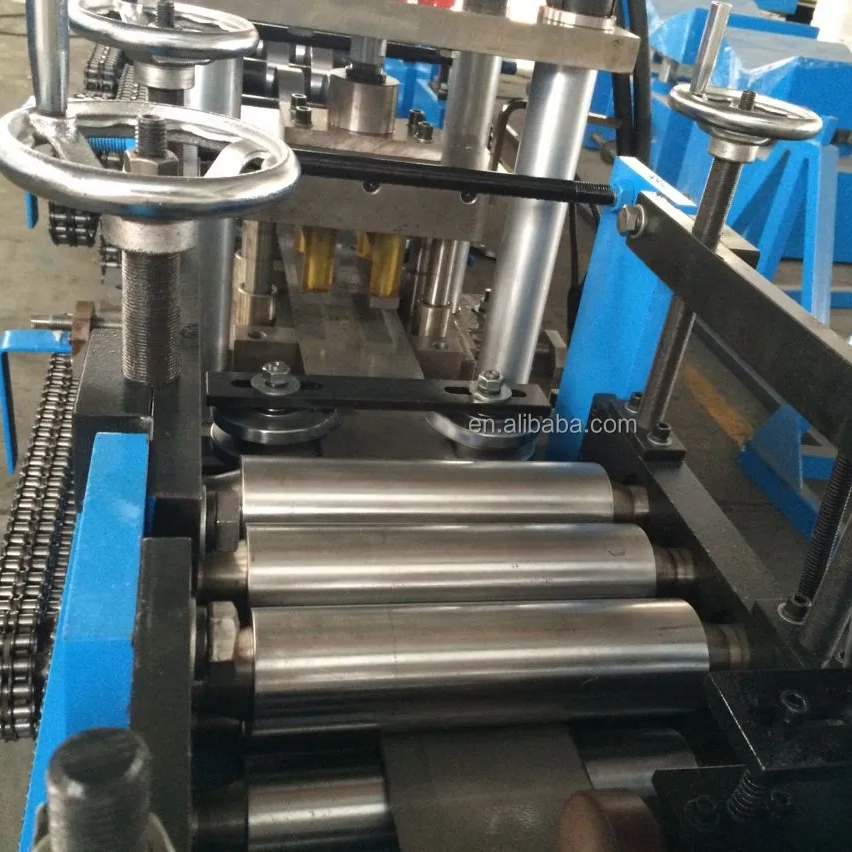

Pitch Roll,Leveler and Feeder |
1 Set |
|
03 |

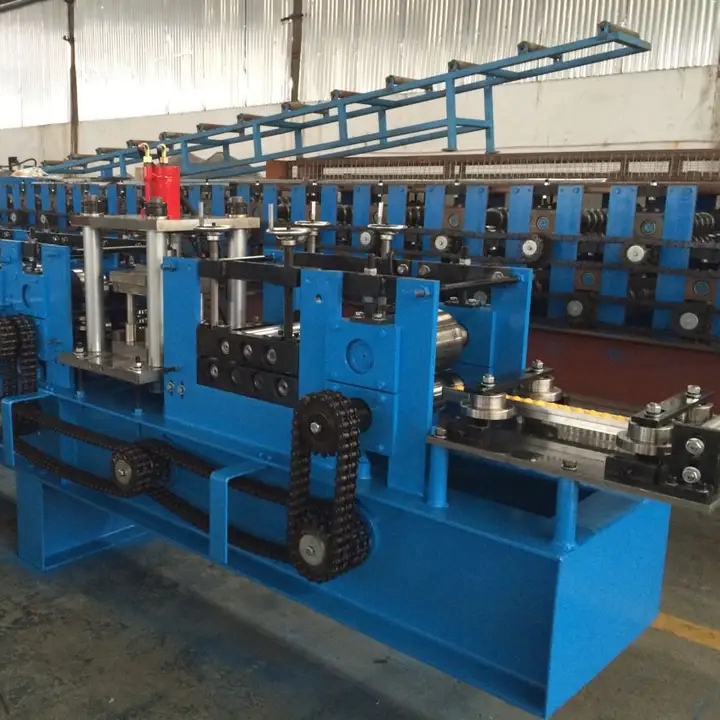

Roll Forming Main Machine |
1 Set |
|
04 |

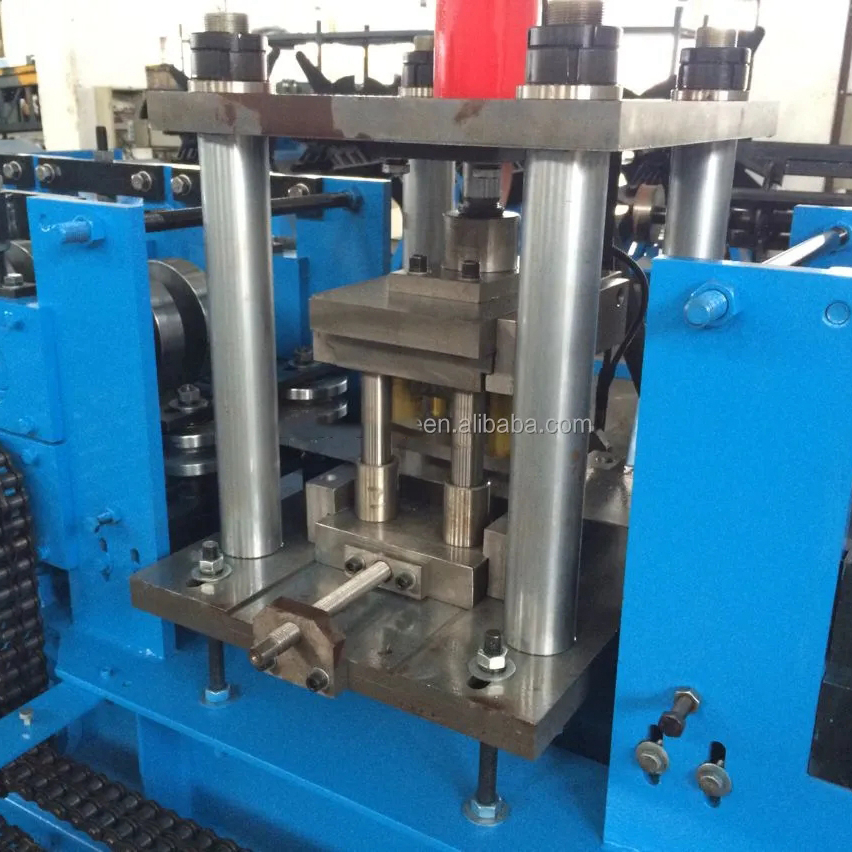

Hydraulic Auto Punching Holes |
1 Set |
|
05 |
Hydraulic Auto Cutting |
1 Set |
|
06 |
Hydraulic Power Bank |
1 Set |
|
07 |
Elc. Control Panel (PLC Base) |
1 Set |
Main Features
1.The roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, straightening,rollforming, cut to length,Runout table.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.One year warranty.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine can produce one or two profiles.
|
Sr. No |
Optional Component |
Quantity |
|
01 |
Hydraulic Coil Decoiler |
1Set |
|
02 |
Coil Car |
1Set |
|
03 |
Auto Stacker 20 Ft. Length |
1Set |
|
04 |
Electrical Coil Decoiler |
1Set |
|
05 |
Telescopic Type Machine Guard |
1Set |
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine’s warranty period is 12months,if the broken parts can’t be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
