Truck Mudguard/Fender Roll Forming Machine
Products Parameter
|
Feeding rack
|
Bridge manual tightening, passive feeding
|
|
Feeding rack load
|
5T
|
|
frame
|
Welded with 300 steel
|
|
transfer method
|
Side
|
|
Forming method
|
Roll forming
|
|
Shaft diameter
|
￠ 75 ㎜
|
|
Chain
|
1.2 inch single row
|
|
Motor Power
|
7.5KW
|
|
Forming speed
|
6-8m / min
|
|
Forming rows
|
12 rows
|
|
Roll material
|
High quality cr12, heat treated after finishing HRC56-58 °
|
|
Hydraulic station motor
|
5.5kw
|
|
Hydraulic station oil pump
|
Gear pump
|
|
Cut off method
|
Hydraulic punching and shearing
|
|
Forming scissors material
|
Cr12, HRC58 ° -60 °
|
|
Rolling thickness
|
1.2-2.0MM
|
|
Material development width
|
Determined from the drawing
|
|
Length processing accuracy
|
± 2mm
|
|
Control System
|
Xinjie PLC
|
|
|
|

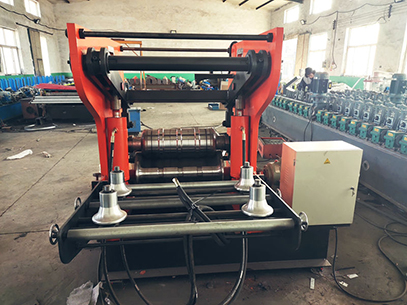

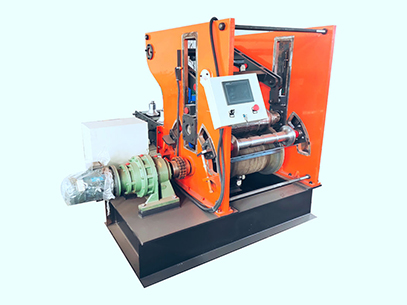

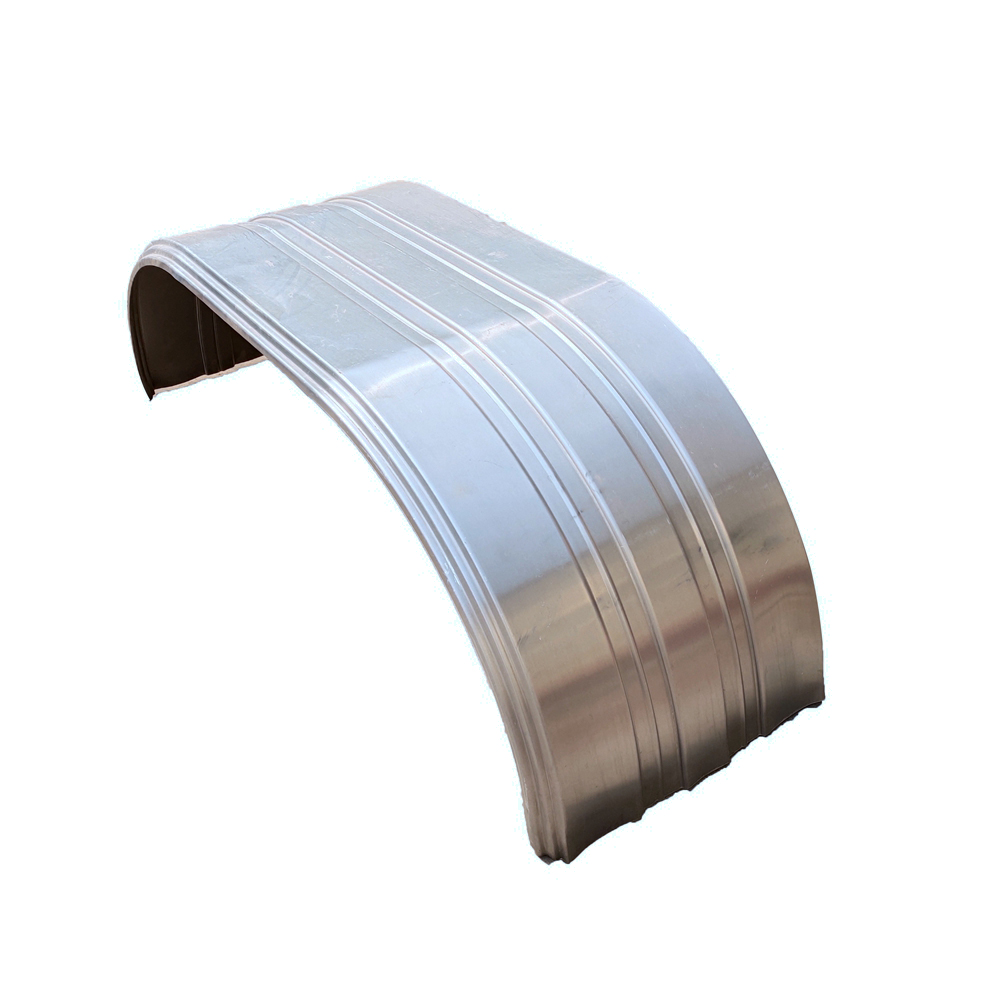

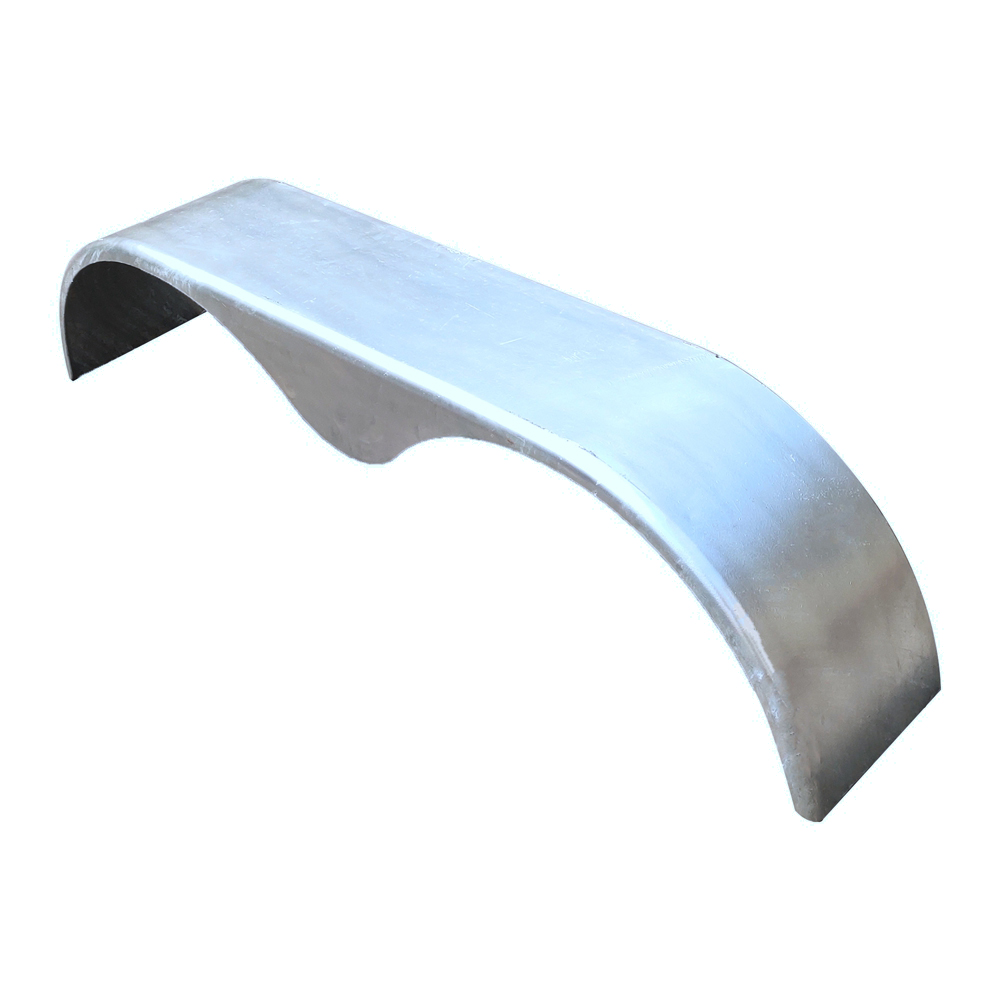

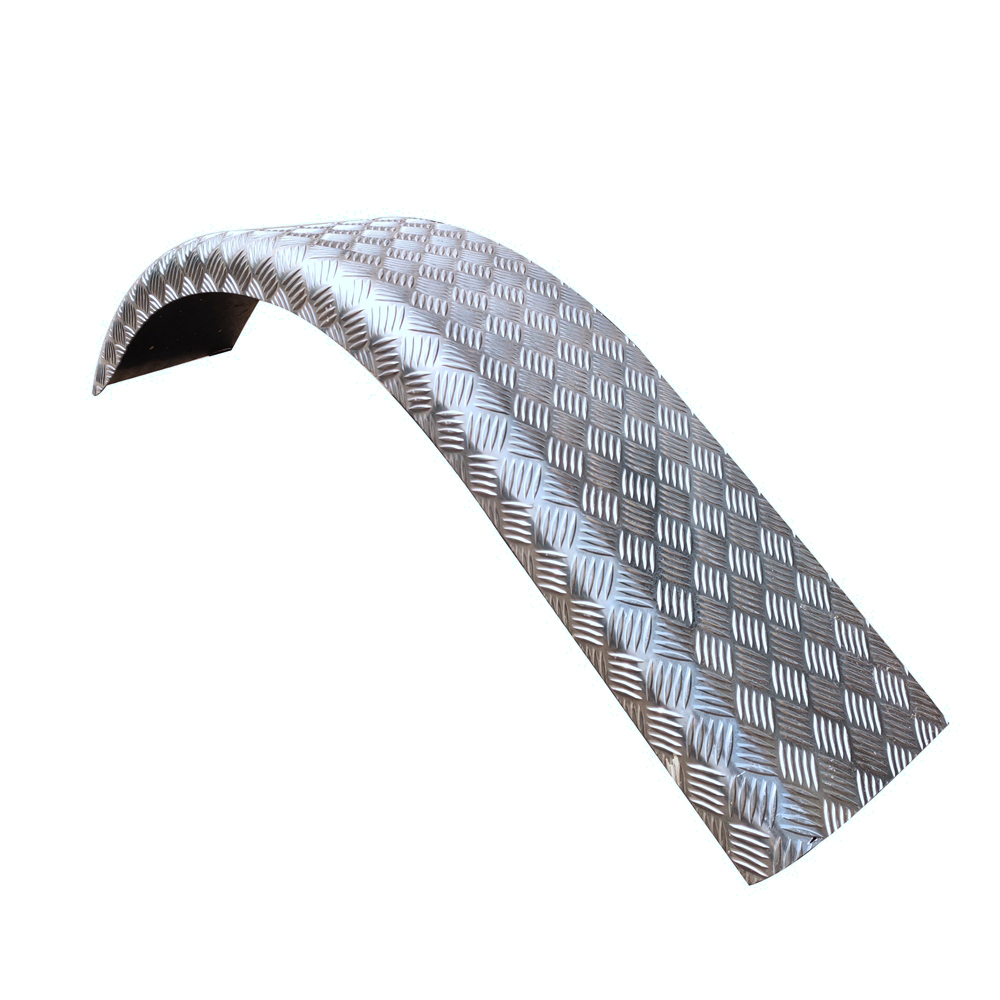

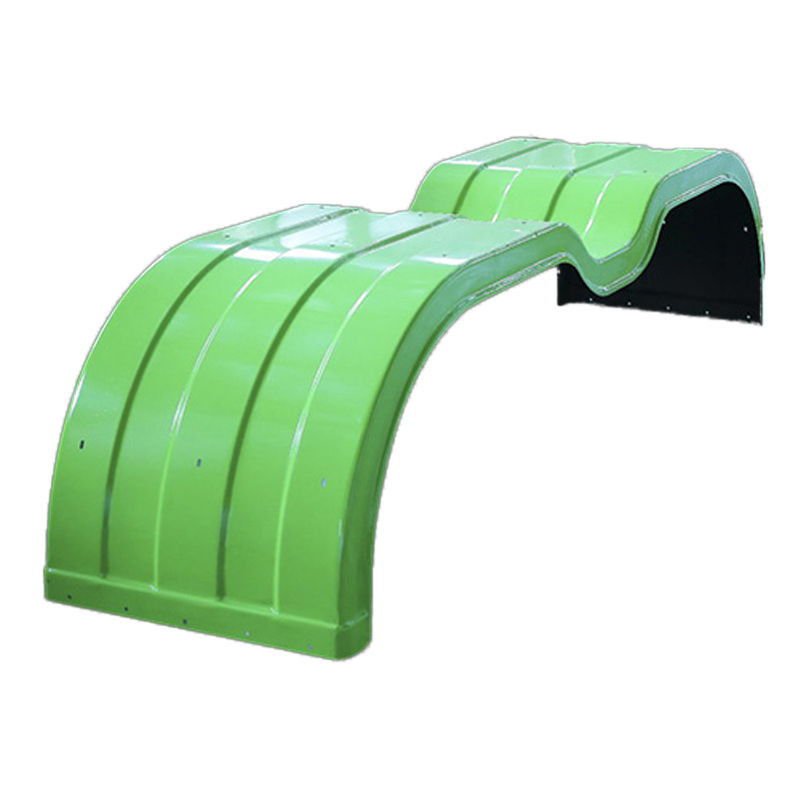

Product Picture

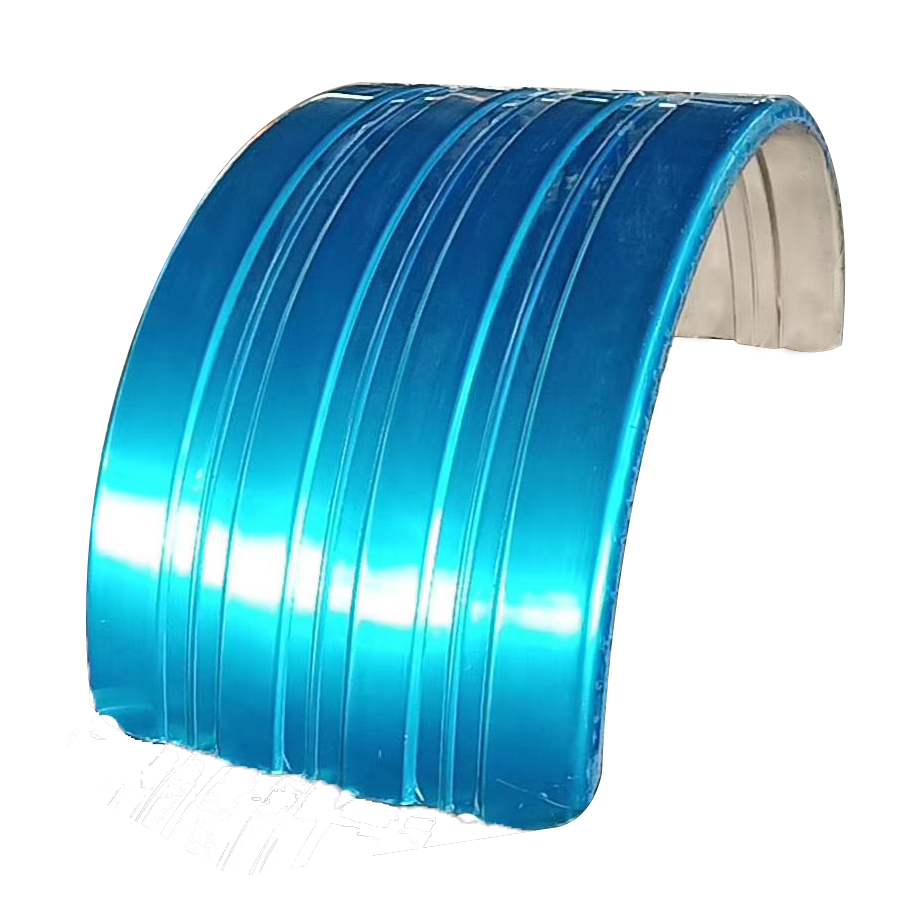

Rolled Curved or Straight, Punched or Slotted

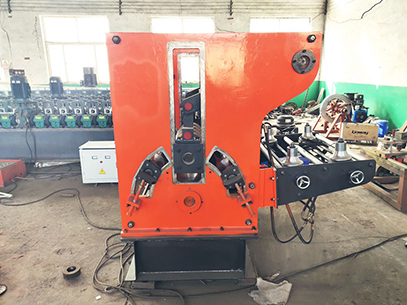

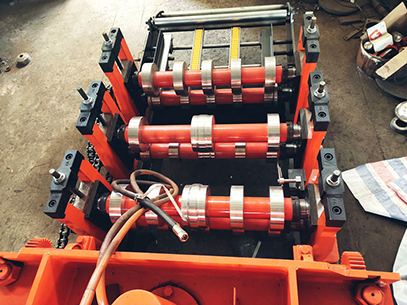

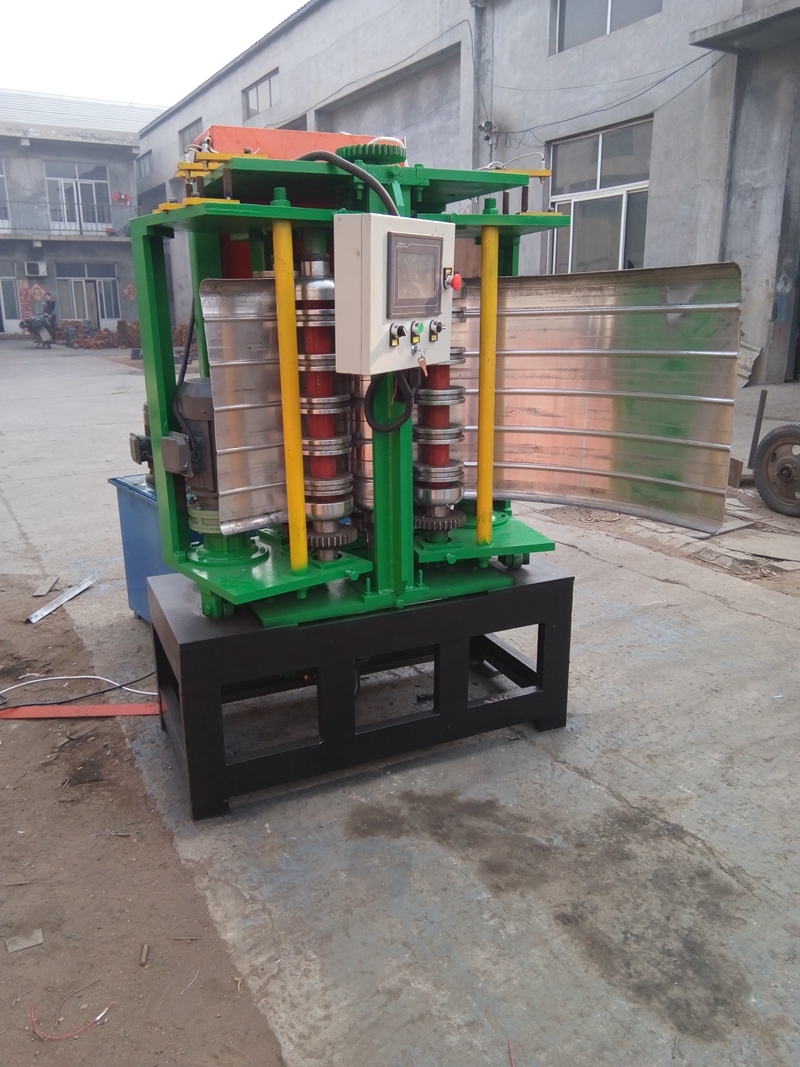

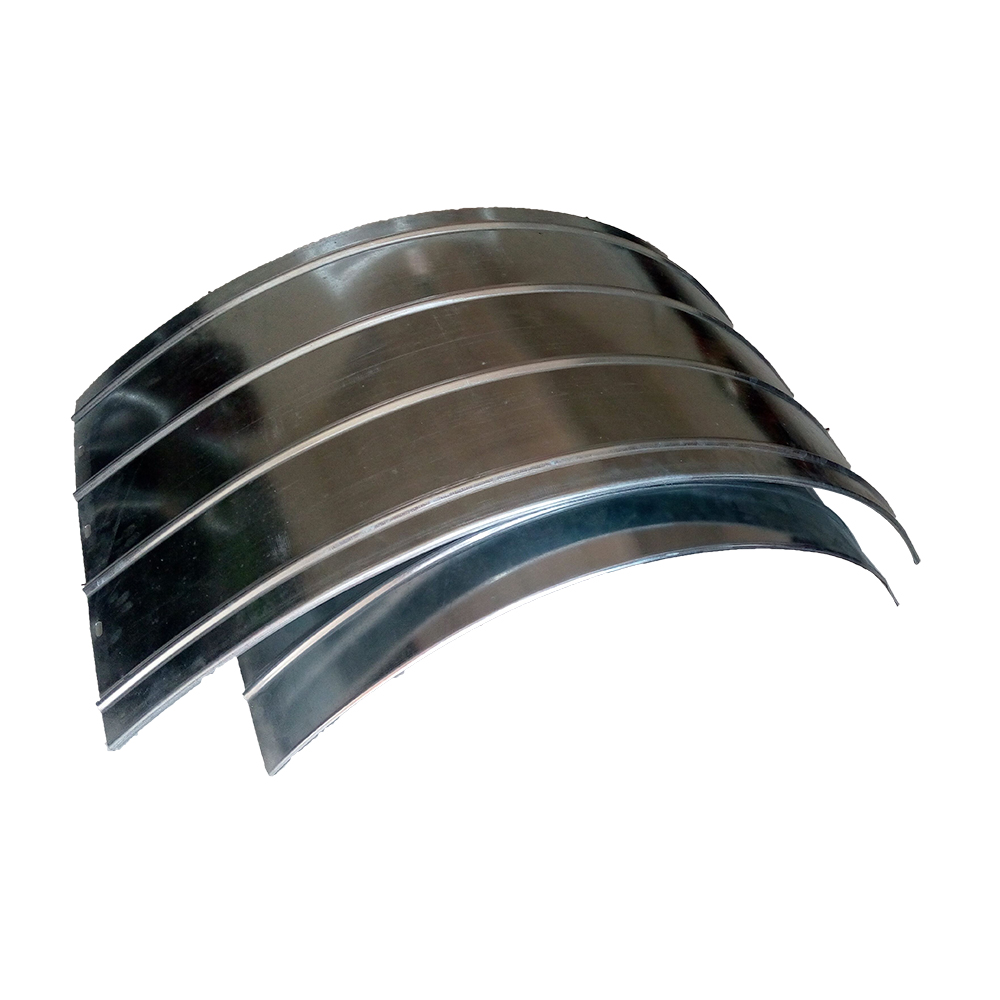

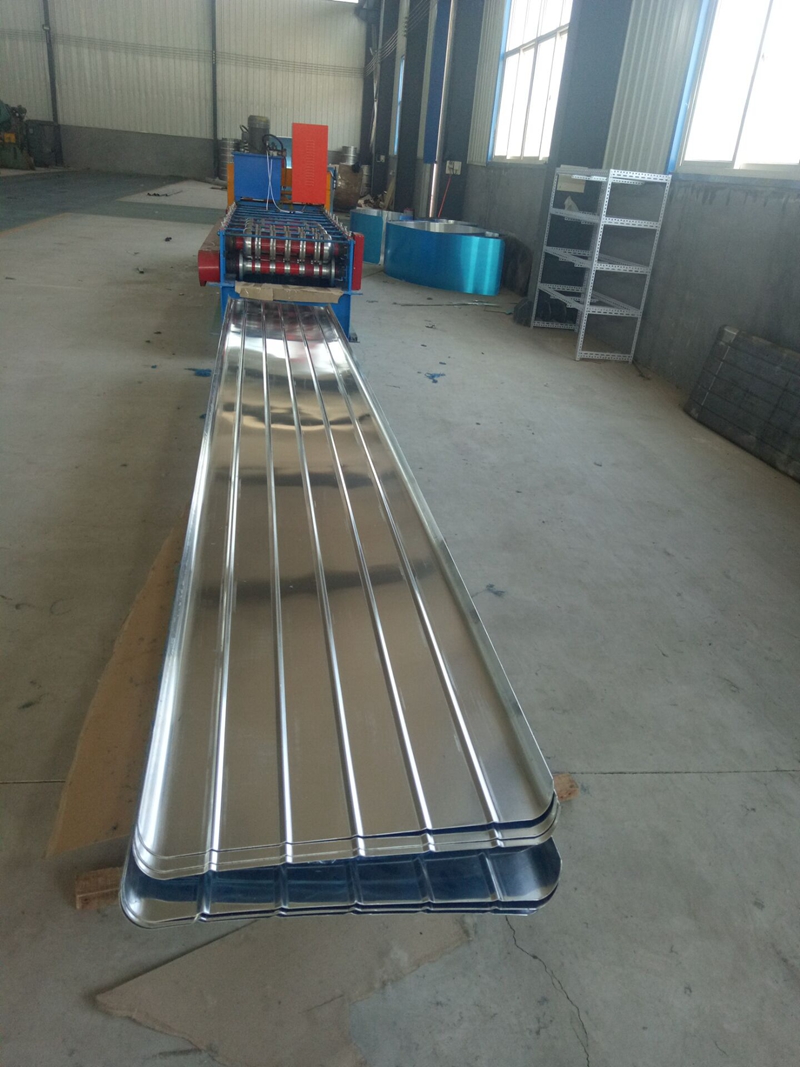

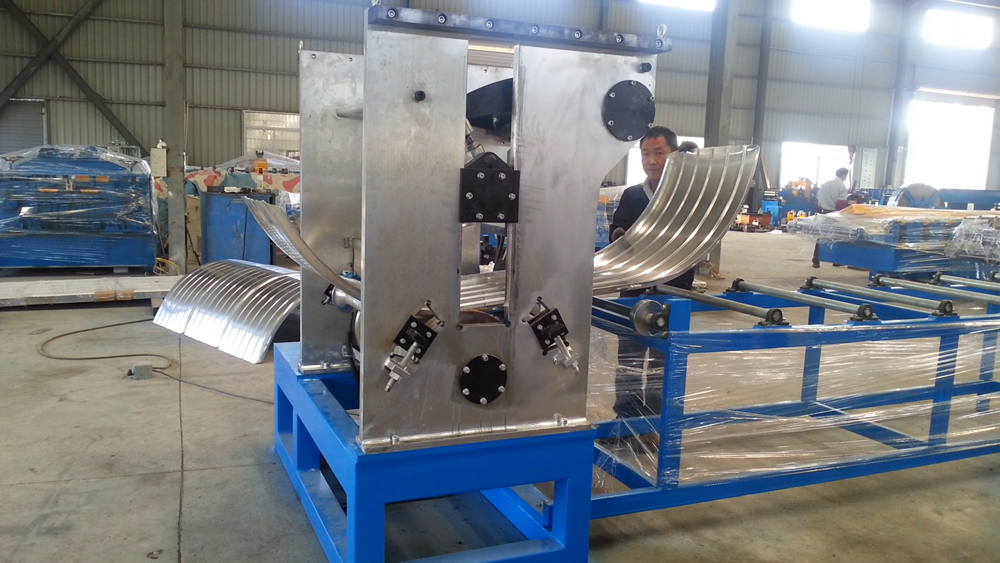

Product Details
Rolled Curved or Straight, Punched or Slotted

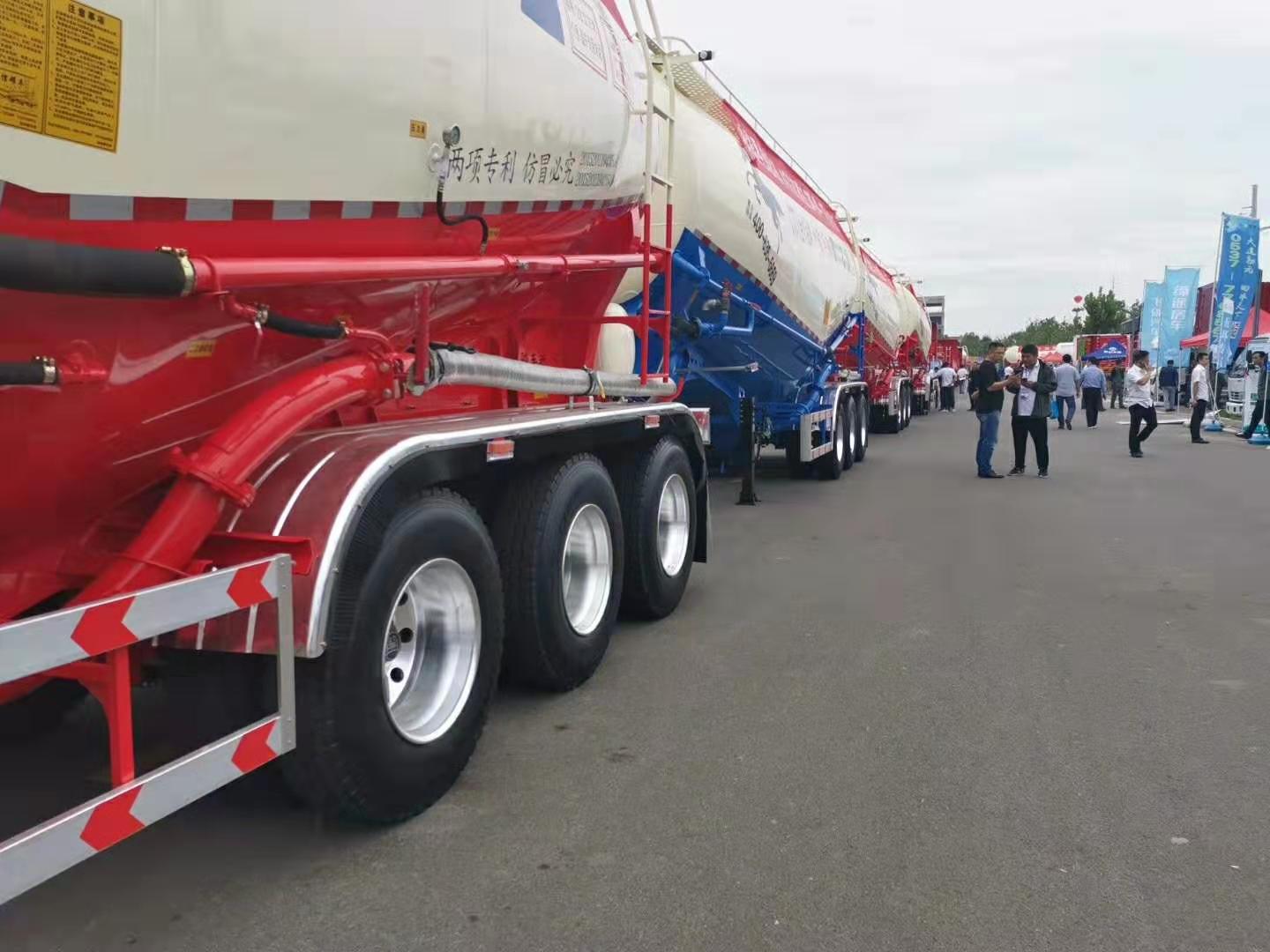

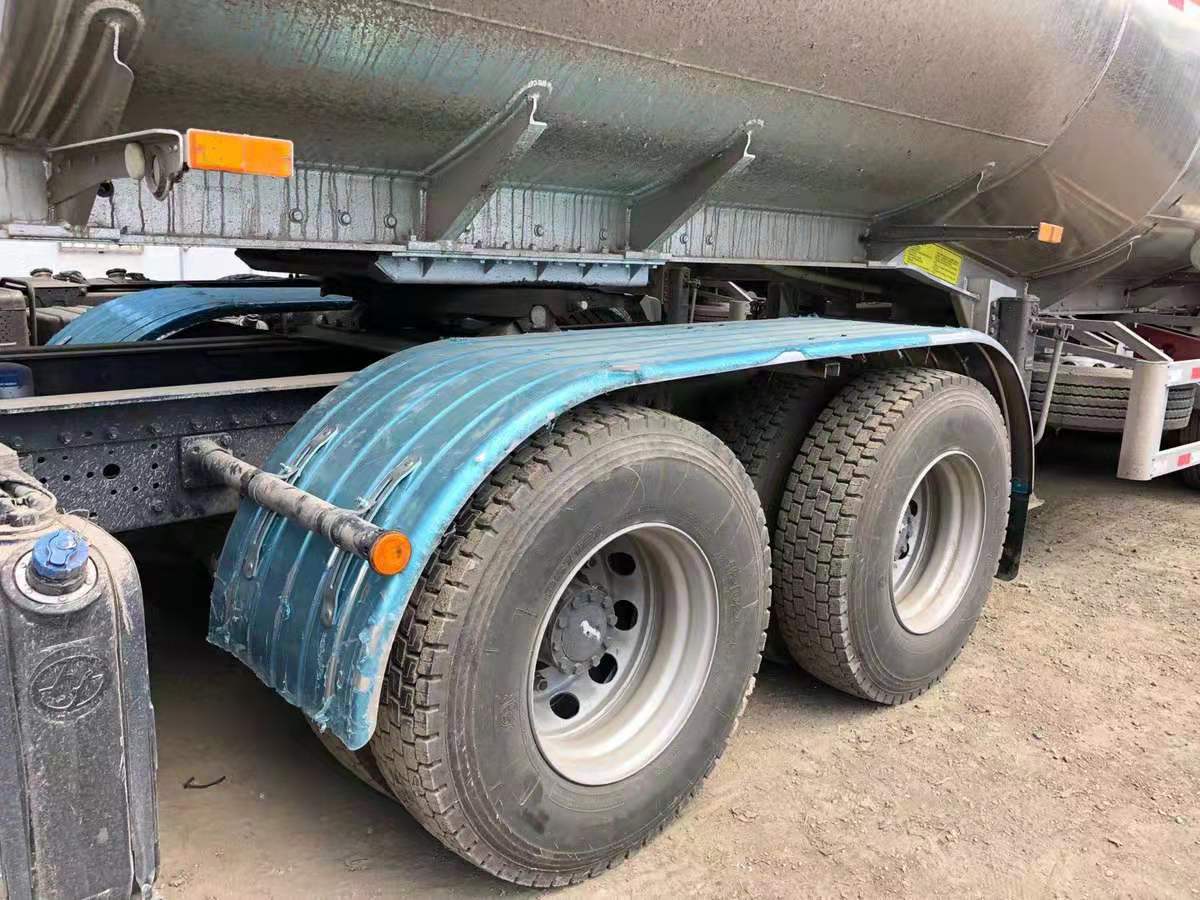

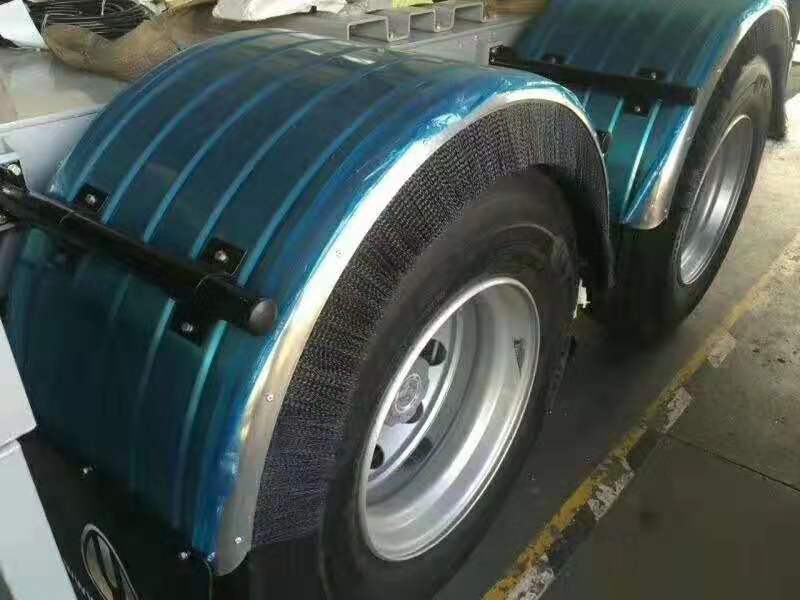

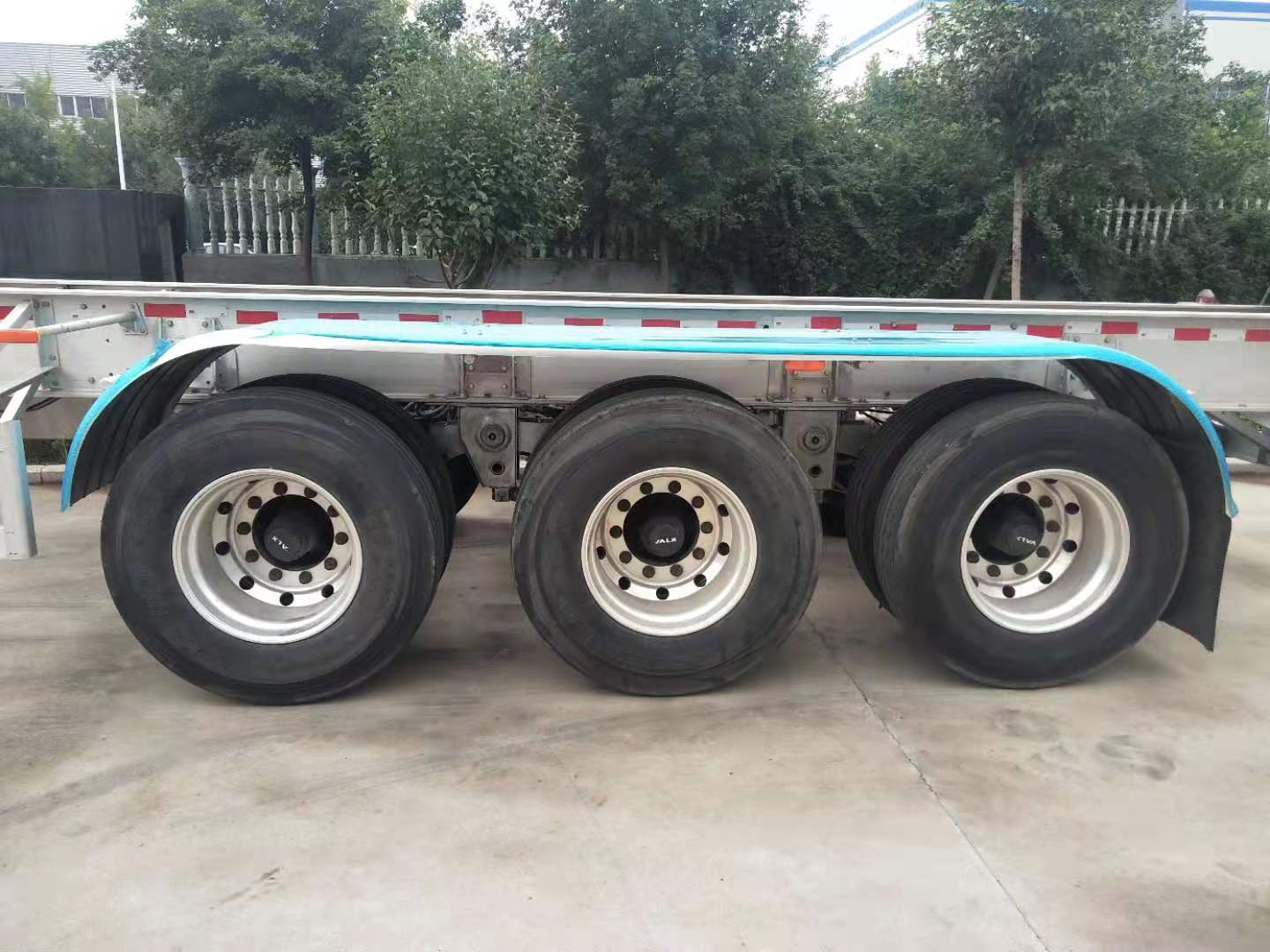

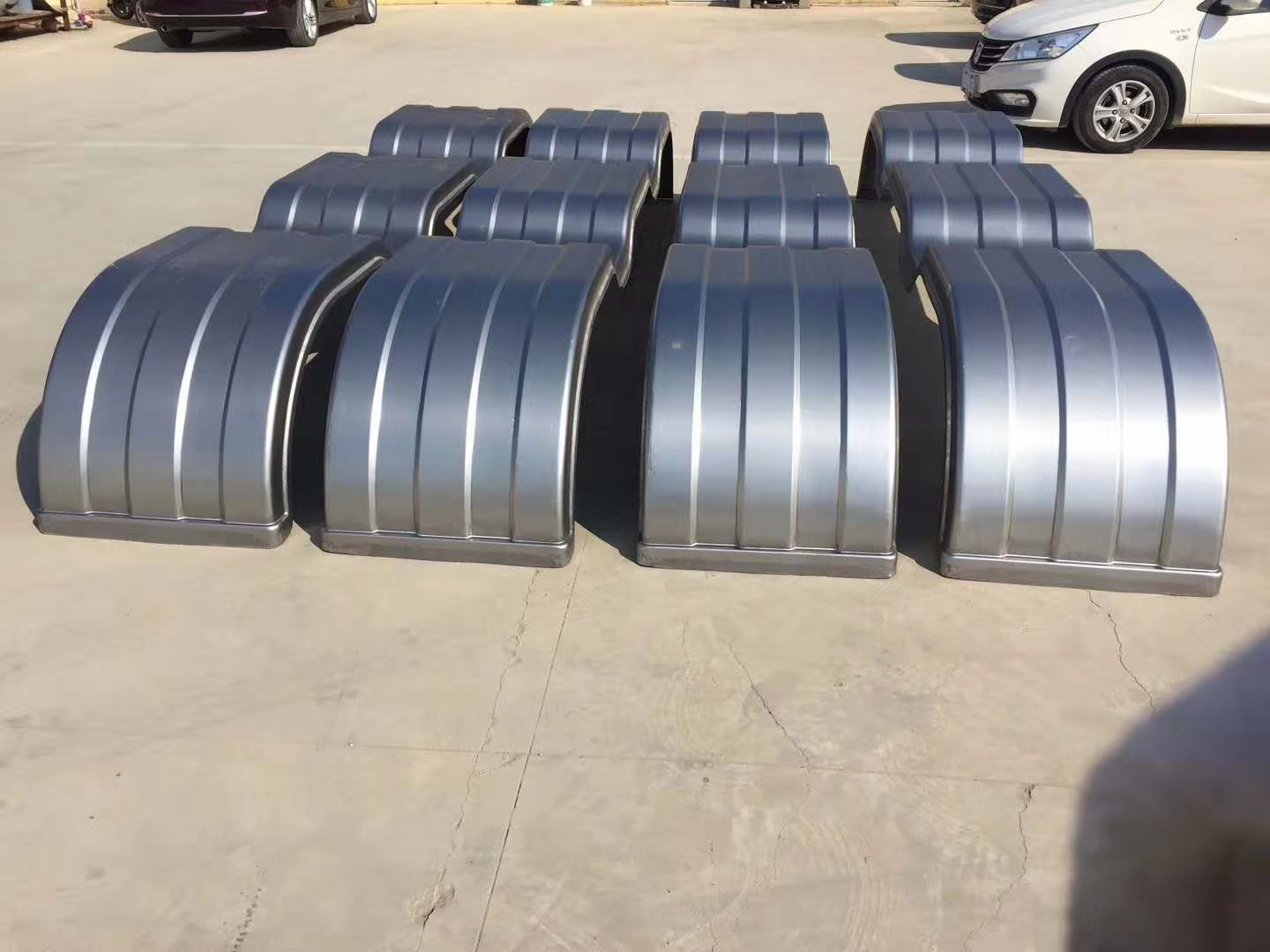

Applications
Rolled Curved or Straight, Punched or Slotted
