Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine
Technical Parameter

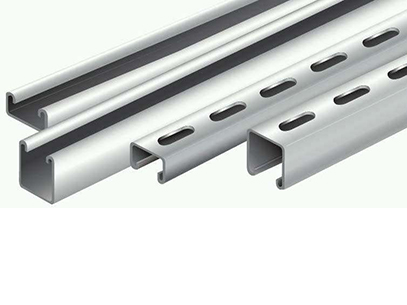

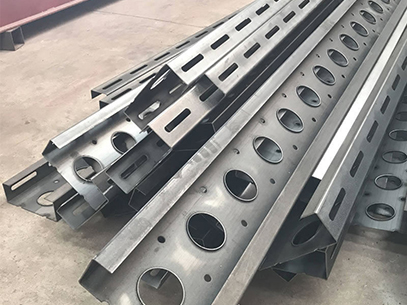

Strut channel roll forming machine is also called like seismic support roll forming machine or seismic channel roll forming machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge(2.6mm)  or 14 gauge(1.9mm)  thick sheet metal (normally range 2-2.5mm), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill(Plain/Black) Steel, Aluminum, Stainless Steel etc. And according to slot type, our machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc.

Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine

Strut channel roll forming machine is also called like seismic support roll forming machine or seismic channel roll forming machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge(2.6mm)  or 14 gauge(1.9mm)  thick sheet metal (normally range 2-2.5mm), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill(Plain/Black) Steel, Aluminum, Stainless Steel etc. And according to slot type, our machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc.

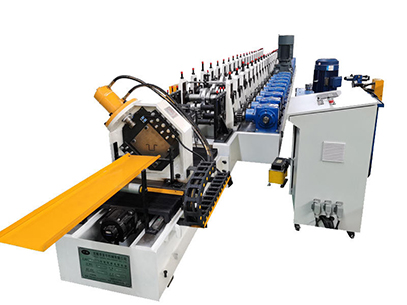

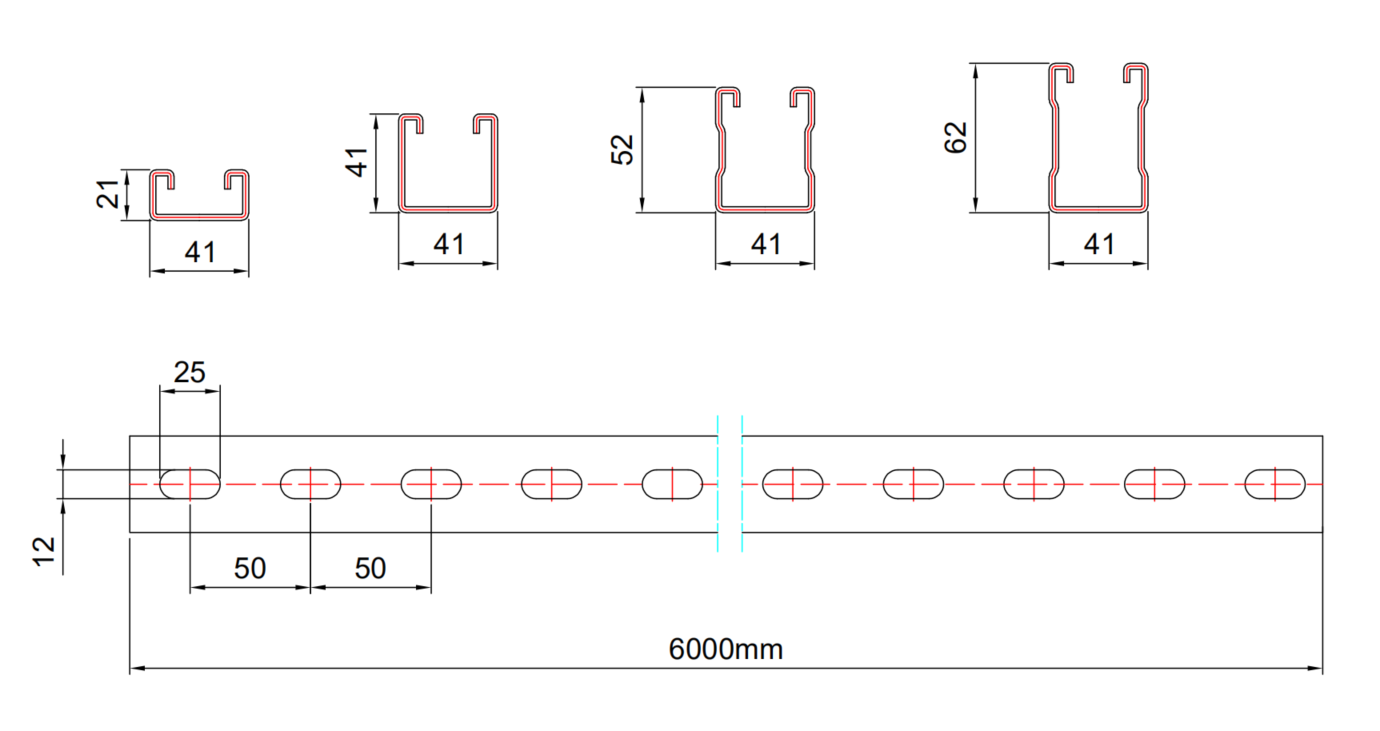

KEFA has many experience at solar photovoltaic stents roll forming machine. We exported to Saudi Arabia, Turkey, Iraq, India, Kuwait, Qatar, Pakistan, Argentina etc. We have made the strut channel profile, and American standard profile as well. The most popular size of strut channel profile is 40*21, 41*41, 41*62, and our roll forming machine could produce 3-5 sizes(eg: 41×21, 41×41, 41×62) in one machine (by manually change spacers), the working speed can reach 16m/min.

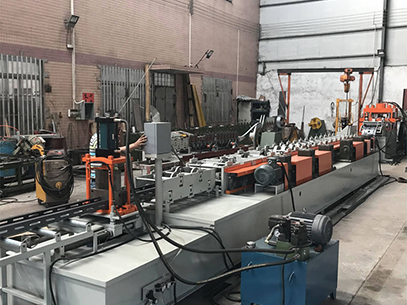

Now we have two workshops producing solar photovoltaic stents to export. If you come to visit us, we would like to show you the producing line.



We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of KEFA Machinery will ensure you obtain perfectly functional profiles.

Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine

Description:

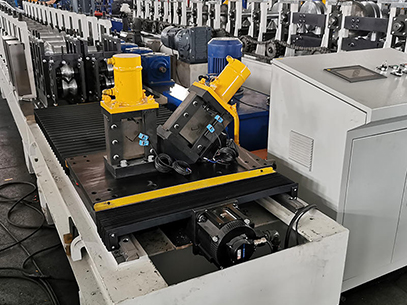

This solar photovoltaic stents roll forming production line is very efficient and higher yield. In this case, we produce 5 different sizes totally and production speed is up to 16m/min. Besides, we recommend burr-free saw cutting to reduce steel wastage and manufacturing cost, reasonable range of burr improves the quality of profile and price, bringing greater benefits to customers. We also adopts the flying saw cutting system to optimize production. This is the best configuration of solar photovoltaic stents roll forming machine.

Flow Chart:

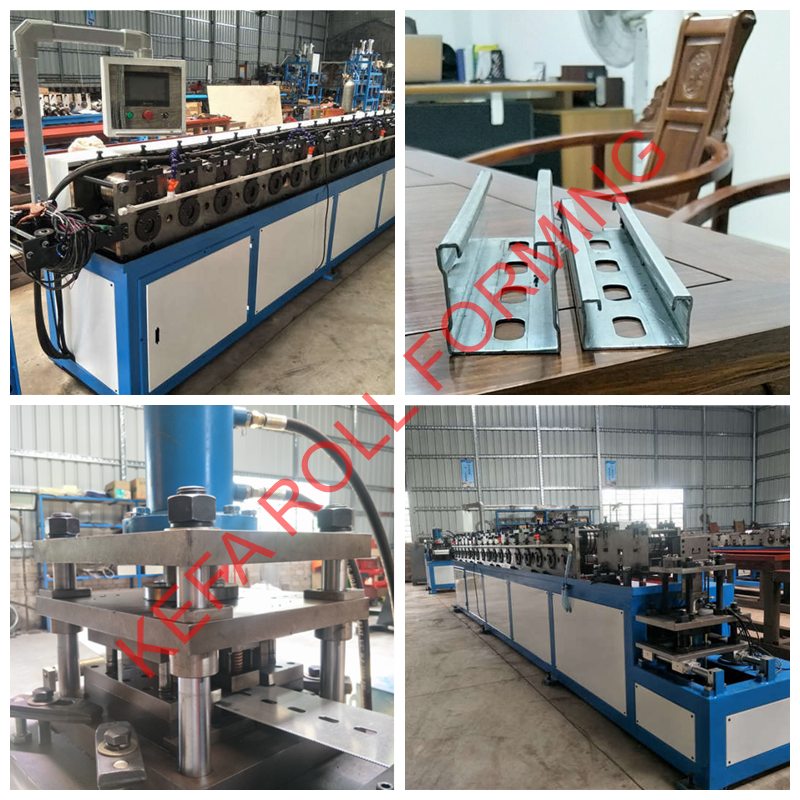

Hydraulic decoiler-Levler-servo feeder-Press- Roll former-Flying saw cut-Out table

Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine

 Technical Specifications

Automatic  Roll Forming Machine

Machinable Material :

A) Galvanized Steel

Thickness(MM): 2-3mm

B) PPGI

C) Carbon steel

Yield strength :

250 – 550 Mpa

Tensil stress :

G250 Mpa-G550 Mpa

Decoiler :

Manual decoiler

* Hydraulic decoiler (Optional)

Punching system :

Hydraulic punching station

* Punching press (Optional)

Forming station :

According to your profile drawings

Main machine motor brand :

Shanghai Dedong (Sino-Germany Brand)

* Siemens (Optional)

Driving system :

Chain drive or Gear drive

* Gearbox drive (Optional)

Machine structure:

Cantilever type

* Forged Iron station (Optional)

Forming speed :

10-20 (M/MIN)

* Or according to your profile drawings

Rollers’ material :

GCr 15

* SKD-11 (Optional)

Cutting system :

Post-cutting

* Pre-cutting (Optional)

Frequency changer brand :

Yaskawa

* Siemens (Optional)

PLC brand :

Panasonic

* Siemens (Optional)

Power supply :

380V 50Hz 3ph

* Or according to your requirment

Machine color :

Industrial blue

* Or according to your requirment

Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making MachineSolar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine

Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making MachineSolar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine

 Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine    Botou Kefa Roll Forming Machine Co., Ltd. is a manufacturer specializing in custom cold roll forming equipment and automatic production lines. We can manufacture hundred types roll forming machines,like Door frame machine,K type long span arching roof machine,automobile profile machine,Container house series machine,Steel silo series machine,Chicken cage series machine,Fence series machine,shelf series machine,highway guardrail series machine,coil leveling machine and all kinds of construction profiles.
    Engineers and technicians are rich in experience of designing,developing and manufacturing of machines to provide customers with customized designs. We pay close attention to new trend of technologies.Our products are sold to many countries and regions around the world, and we have established long-term cooperative relationships with customers.

1. Quality Control
A. Every parts of machine is examed carefully without any omit.
B. Welcome to our factory to check machine

2. Installation & Training
A. We supply video to teach buyer how to install and operate machine
B. Welcome customers come to our factory, we are glad to teach you face to face.
C. Our technicians could come to customers’ factory to install machine

3. After-sale service
A. One year warranty for parts and shipment of parts is free.
B. 24hours*365 days technical support online.

Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine

Our machines are working throughout our country and overseas.Few of our reputed clients have in fact given us their repeat orders for their production expansion.

Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine

Established in 2008 year,Kefa is a professional manufacturer specializing in the developing and manufacturing of cold roll forming machine,Silo Making Machine,Curve Profile Roll Forming Machine.
1.Construction Roll Form Machine:
Roof And Wall Panel,Floor & Roof Deck,Purlines,Elevators,Metal Building Beam,Metal Framework,Drywall Stud and Track,False Ceilings,Door & Window Frame,Door Skin,Shutter Door,C/Z/U/L Shaped Steel,Roof Flashings Roll,Arch Roof Panel,Container House
2.Automotive Roll Form Machine:
Carriage Panel,Bicycle/Motorbycle Wheel Rim,Tanker/Trailer Fender,Body Sides.
3.Agricultural Roll Form Machine:
Steel Silos,Greenhouse Pipe/Channels,Conveyor Cover,Layer Cage Frame,Vineyard Post,Corrugated Sheet Curver,
4.Industry Roll Form Machine:
Fence,Leveling/Slit & Cut to Length Line,sheet rolling bending,Cone rolling bending,Lock hoop,Pipe Arch Curve,Expansion Joint,Hand rail,Guard rail,pipe milling
5.Energy & Electricals
Solar Panels,Conduits,Light Fixtures,Pylons,Cable Trays,Cabinets,Box.
6.Logistics Roll Form Machine
Metal Containers,Upright,Shelving,Mezzanine Floors,Walkways,Scaffolding,Cold Rooms,Pallet Rack,
KEFA has been engaged in the metal roll forming industry for many years and devoted to developing some steel structure machines with a professional technology and reasonable price. In particular, we can provide professional service, high quality, through design and installation. At KEFA, our experience is our advantage.

Solar photovoltaic stents roll former [Rolling Strut Channel Machine] Steel strut Channel Making Machine

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine’s warranty period is 12months,if the broken parts can’t be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
