Soundproof/Sound Barrier Panel Making Machine
Technical Parameter

Sound Barrier Making Machine
Sound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound Barrier

1.The sound barrier board produced by the equipment has good stability, wind and rain resistance, anti toppling, beautiful and neat, and is not easy to deform.

2.Controlled by PLC automatically, convenient and quick

Sound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound BarrierSound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound BarrierSound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound BarrierHighway Sound Barrier Box Board Forming Machine

Roll forming machine for make Highway Sound Barrier Box Board includes two steps: STEP1:making sound barrier box board STEP2: making slotted panel highway soundproof box board is any means of reducing the sound pressure with respect to a specified sound, Highway noise barrier can reduce wind, engine, road, and tire noise.

• Production working flow

1: Produce 1-rib panel, Decoiler→Forming Machine A-Hydraulic cutting-output

2: Produce 2-ribs panel, Decoiler→Forming Machine B-Hydraulic cutting→output

3: Produce C channel pad (Left & Right), Decoiler→online punch→ Forming Machine→Hydraulic cutting→output

4: after manual assembles, go through a clamping machine.

5: louver punch machine (this is an optional machine, the barrier could use a perforated panel or louver pattern panel)

 Acoustic panel post roll forming machine Machine design capacity

1. Raw material thickness: 1.2mm

2. Raw material yield limit: Gl.

3. the working speed with punching: 0-10m/min

Machine components

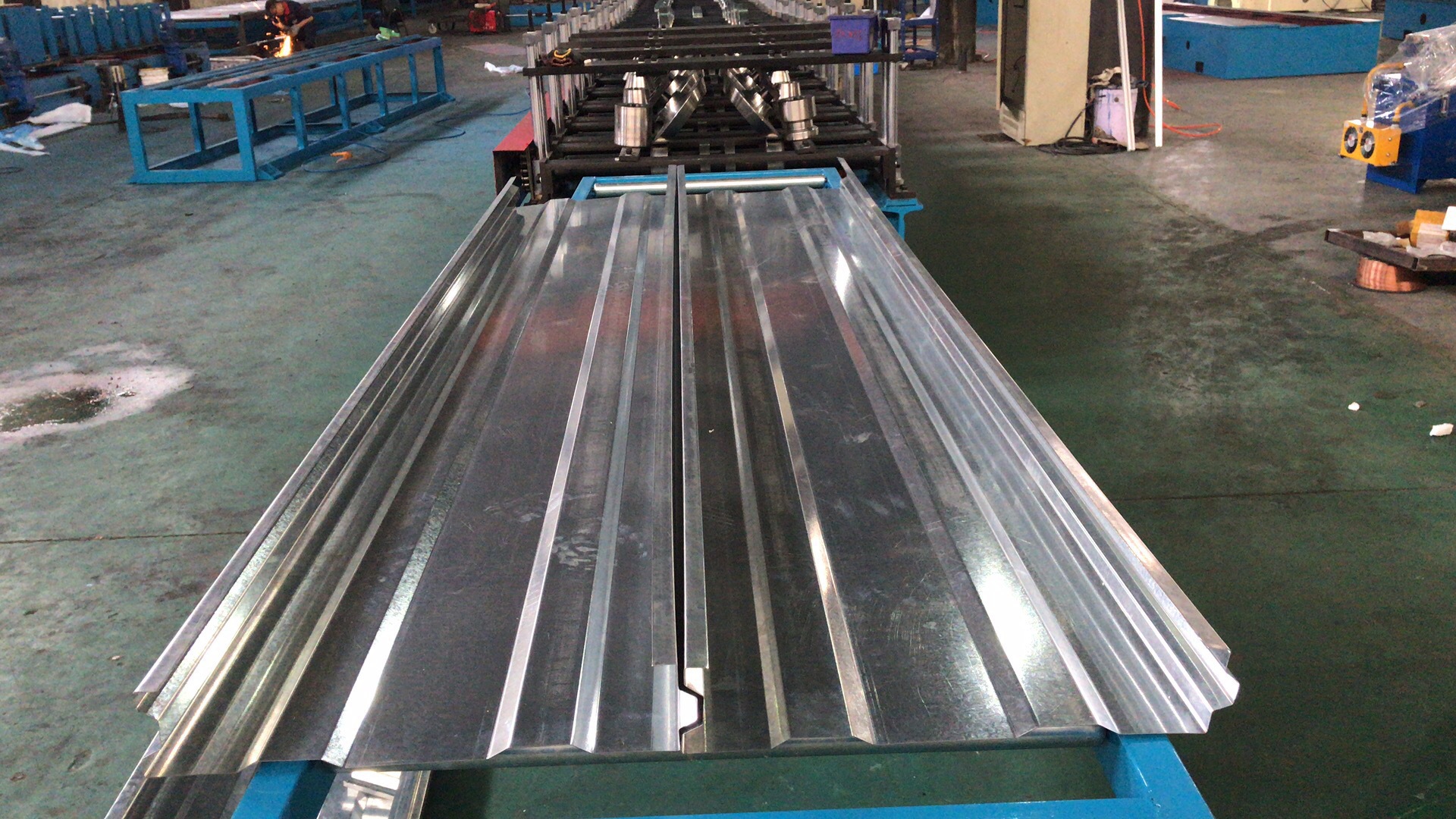

Machine 1#:1-rib rolling forming machine

2#:2-rib rolling forming machine

3#:C channel pad punch & forming machine

4#:Clamping machine

5# louver perforated machine

 Each part technical parameter

Machine 1#:1-rib rolling forming machine

1.10T Manual decoiler

2.1-rib Roll Forming Machine

Machine 2#:2-ribs rolling forming machine

1.10T Manual decoiler

2.1-rib Roll Forming Machine

Machine 3#:C channel Pad (left & right) the Machine 4#: Clamping Machine

Machine 5#: Louver Punch Machine

Sound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound BarrierPerforated Sound Barrier Cover machine
Production working flow
Hydraulic decoiler+loading cart -leveling unit->160T Hydraulic Press Machine with perforated die-Roll Forming machine-hydraulic bending & cutting-automatic output table

• Machine design capacity

1. Raw material thickness:1.5mm

2. Raw material yield limit: aluminum

3. the working speed with punching: 3-6m/min

• Machine components

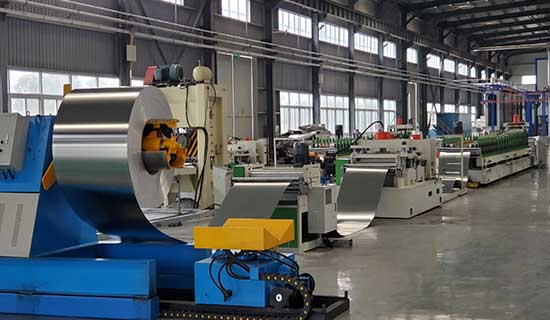

This production line will be combined with a hydraulic decoiler with a loading cart, leveling unit, 160T YANG LI Press Machine, roll forming machine part, hydraulic cutting & bending unit, output table, hydraulic oil pump, and electrical control cabinet and so on.

 Each part technical parameter

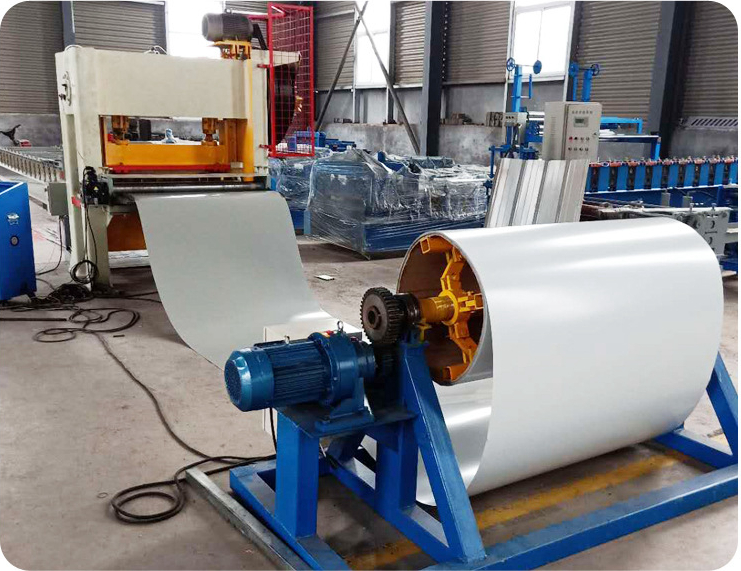

1.Hydraulic decoiler with loading cart

1.1 Loading capacity 5T

1.2 Steel coil I.D. (p480-p520mm

1.3 Steel coil O.D max p1500mm

1.4 Cantilever width 1000mm

2. Leveling unit

2.1 Roller number 7-roller

2.2 Roller dia. 70mm, heating treatment, hardness HRC480 ~ 52°

2.3 Frequency motor 4kw

2.4 Leveling speed 1-18m/min

2.4 Roller material 45# steel

3.Servo Feeding Unit

3.1 Servo brand Delta

3.2 Motor power 3KW

4.160T Hydraulic Press Machine(GZ Brand)

4.1 Puncher machine model 160Ton High speed accuracy press

1 die unit to Make slotted holes

4.2 Puncher die

2 dies to make end slot

4.2 Puncher die material Cr12MoV

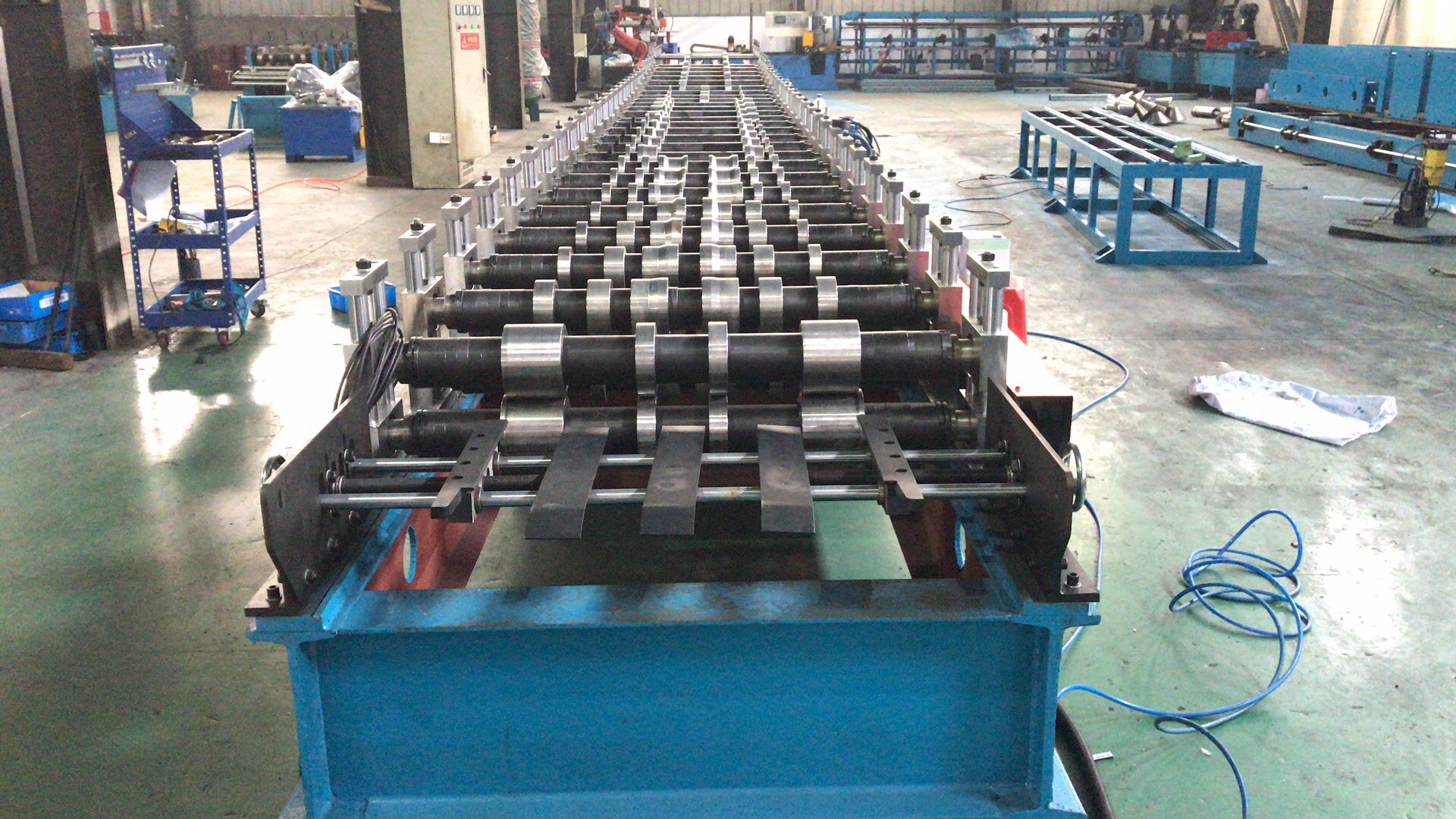

5.Roll Forming Machine

5.1 Roller groups 20 stations

5.2 Roller material GCr15 with heat treatment, HRC58-62°

5.3 Roller shaft dia. φ65mm

5.4 Shaft material 45# with quenching and tempering

5.5 Motor 11KW

5.6 Transmission way Chain with automatic size changeable

5.7 Machine frame body Welded plated, Stress-Relieving

5.8 Roller supporter Pillar

5.9 Roller bearing HRB,30213

6. Hydraulic Pump Station for main machine

6.1 Motor power 4KW

6.2 Cooling way Fan wind

Sound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound BarrierSound barrier panel roll forming machine

The Sound Absorbing Panels Roll Forming Machine or sound barrier making machine has the characteristics of fast production speed, less labor required, exquisite workmanship, and no scratches on the surface of the sound-absorbing, this production line consists of a feeding device, transmission device,and forming roller table and main machine,and cutting device after forming, and hydraulic system,and electric control system,and finished material holding device.

Roll Forming Machine in noise barriers roll forming machine or acoustic panel post roll forming machine has 18 stations Roller groups that make by 45# Steel, chrome coated with heat treatment. Roller shaft dia is 75mm and Shaft material is 45# Steel with quenching and tempering. the power of Motor is 7.5KW and the Transmission way is with Chain driven.In fact, Kefa Roll forming Machine, the company specializes in the research and development, design, manufacture, sales, and foreign trade of cold-formed machines

Sound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound BarrierSound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound BarrierSound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound Barrier

Sound Proof Fence MID East Hot Sale Transparent Soundproof Panel Making Machine Sound Barrier
