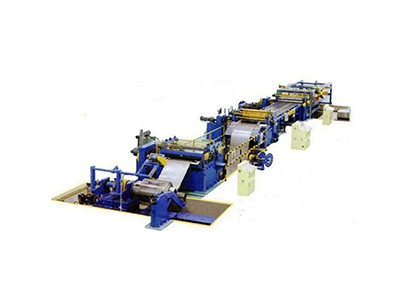

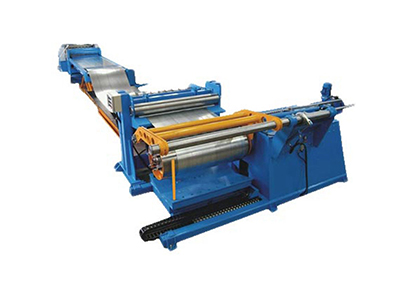

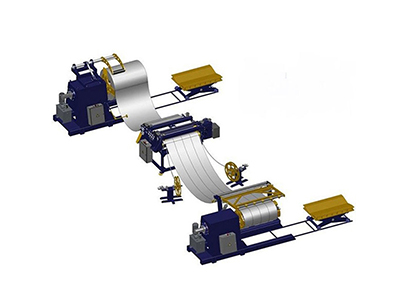

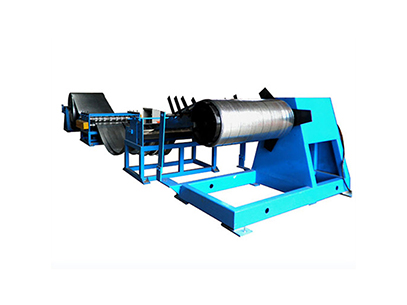

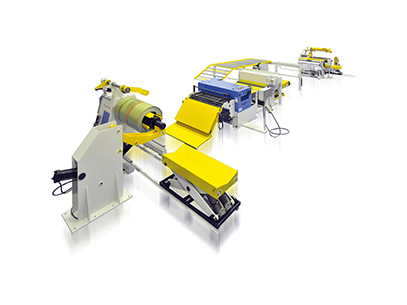

factory supply metal steel equipment for sheet slitting machine line with decoiler and recoiler
|
(1) Raw material parameters
|
|
|
1. Feed material
|
Steel plate
|
|
2. Feeding thickness
|
0.2mm – 0.35mm
|
|
3. Feeding width
|
300 mm-1300 mm
|
|
4. The largest material roll
|
D 1200 mm
|
|
5. Inner diameter of material roll
|
Customer provided
|
|
6. Roll weight
|
5T
|
|
(2) Other parameters
|
|
|
1. Power supply
|
380V, 50Hz
|
|
2. Total motor power
|
About 60KW
|
|
3. The whole line covers an area
|
About 20m × 6m
|
|
4. Unit trend
|
Facing the main console from right to left
|
|
5. PLC control
|
DC speed regulation
|
|
(3) Production line equipment configuration
|
|
|
1. Hydraulic core unwinder
|
5 tons
|
|
2. Slitting unit
|
(0.2-1) mm × 1300mm
|
|
3. Separation tensioning device
|
1 set
|
|
4. Winder
|
5 tons
|
|
5. Hydraulic system
|
16MPa
|
|
6. Electronic control system
|
1 set
|
