Steel Scaffolding Plank Roll Forming Machine
Technical Parameter

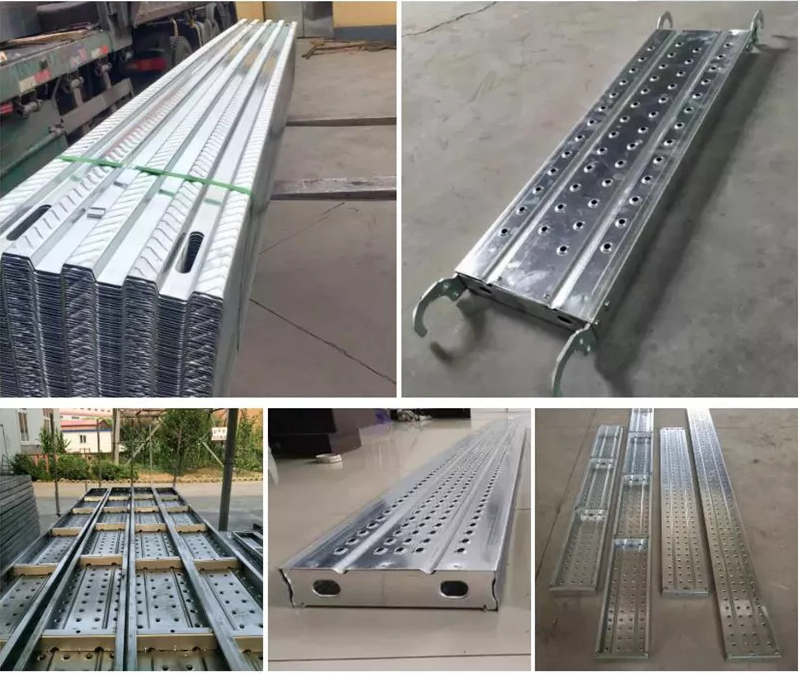

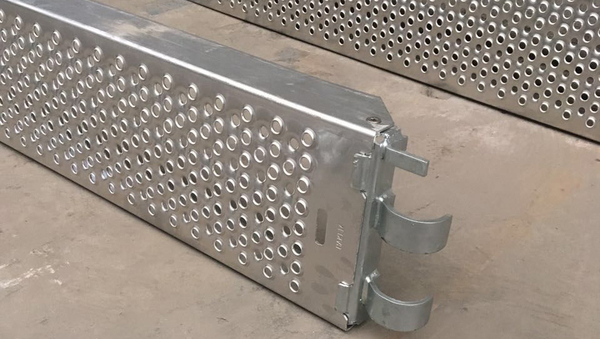

Scaffold plank roll forming machine can make scaffold plank.

We adopt servo feeder to make sure the holes are in high precision. We use punching press to make line speed faster and we use hydraulic post cutting to make sure the profile perfect.

The thickness of raw material is around 1-2mm.

Scaffold plank roll forming machine can make scaffold plank.

We adopt servo feeder to make sure the holes are in high precision. We use punching press to make line speed faster and we use hydraulic post cutting to make sure the profile perfect.

The thickness of raw material is around 1-2mm.

Steel Scaffolding Plank Making Machine Purlin Roll Forming MachineSteel Scaffolding Plank Making Machine Purlin Roll Forming MachineSteel Scaffolding Plank Making Machine Purlin Roll Forming Machine

Steel Scaffolding Plank Making Machine Purlin Roll Forming MachineSteel Scaffolding Plank Making Machine Purlin Roll Forming Machine

Scaffold plank Roll Forming Machine

No.

Item

Specification

Optional

1

Suitable material

Type:Galvanized Coil, PPGI, Carbon steel Coil







Thickness(mm):1-2







Yield strength: 250 – 550MPa







Tensil stress( Mpa):G350Mpa-G550Mpa



2

Nominal forming speed(m/min)

10-25

Or according to your requirement

3

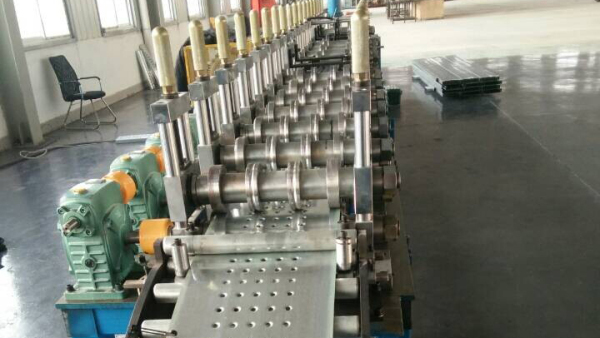

Forming station

20



4

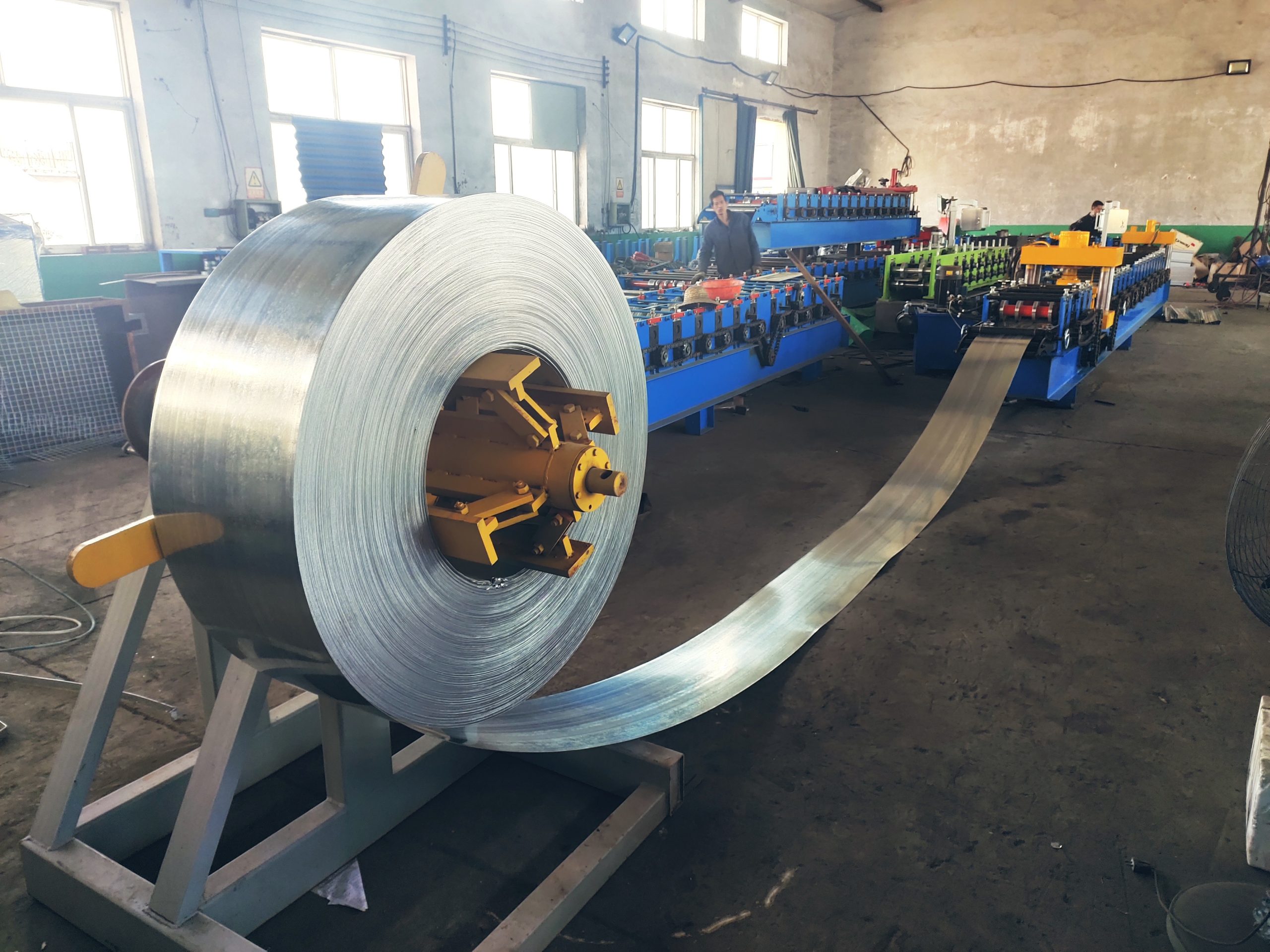

Decoiler

Manual decoiler

Hydraulic decoiler or double head decoiler

5

Main machine motor

Sino-German Brand

Siemens

6

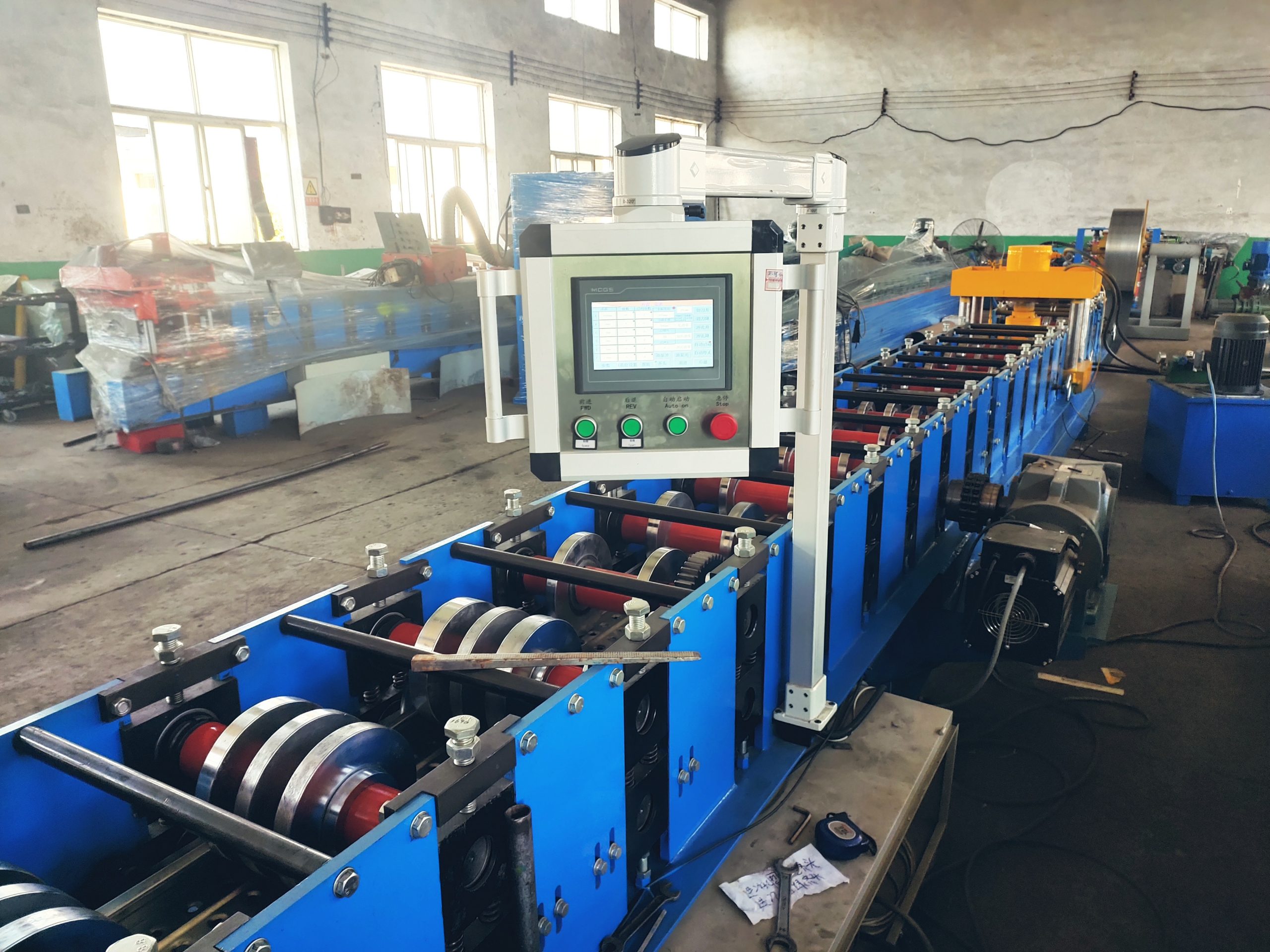

PLC brand

Panasonic

Siemens

7

Inverter brand

Yaskawa



8

Driving system

Chain drive

Gearbox drive

9

Rollers’ materail

Steel #45

GCr15

10

Station structure

Torri stand structure

Forged Iron station
Or Wall panel station

11

Punching system

No

Hydraulic punching station or Punching press

12

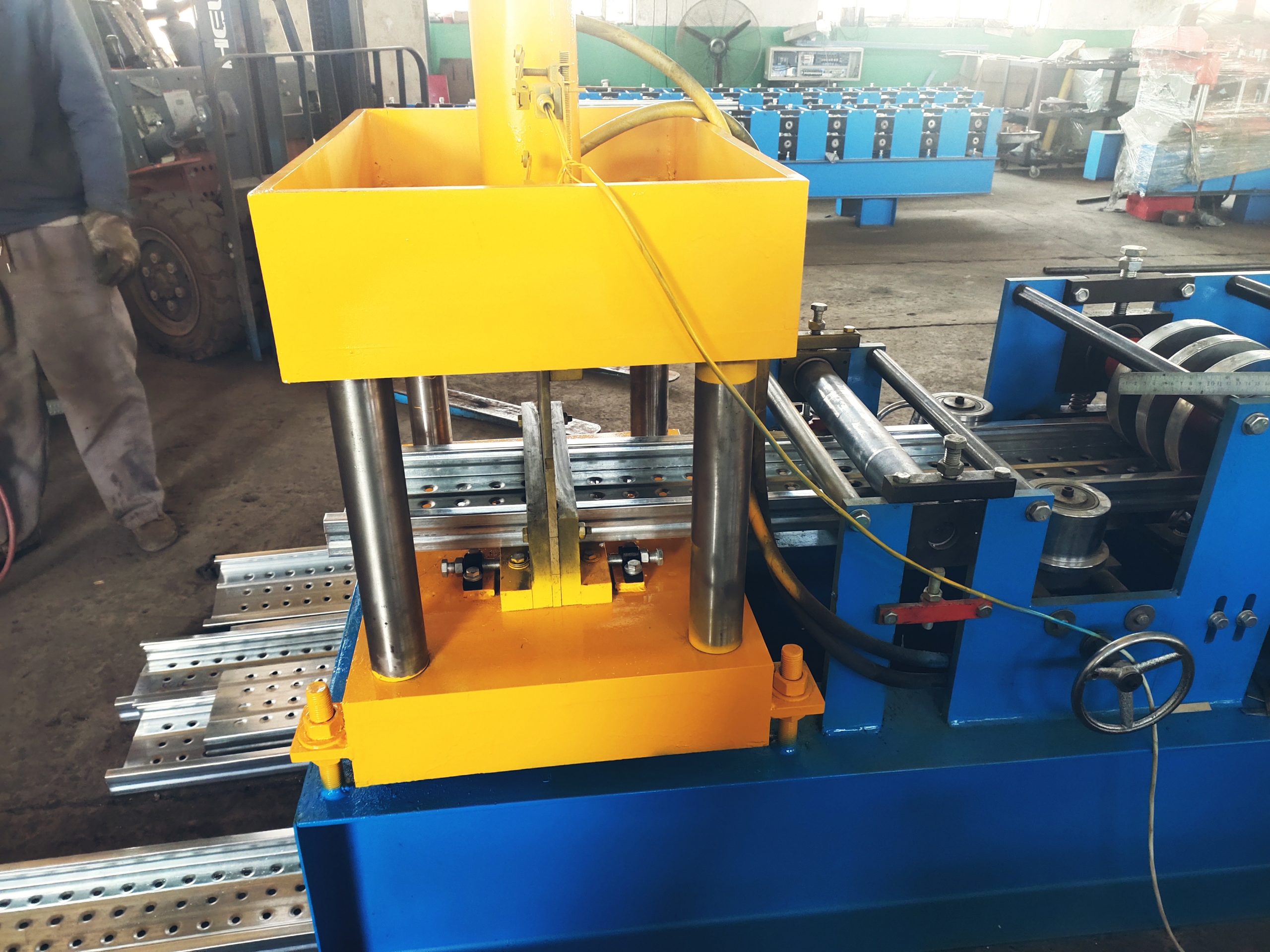

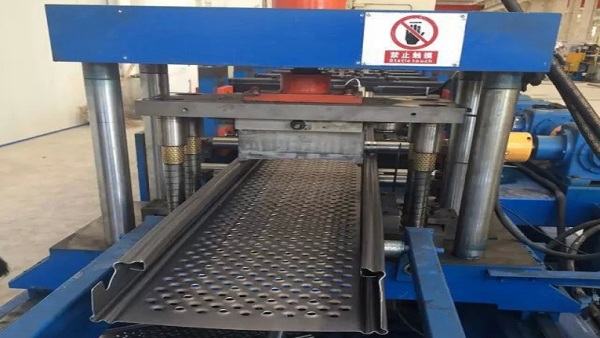

Cutting system

Post-cutting

Pre-cutting

13

Power supply requirement

380V 60Hz

Or according to your requirement

14

Machine color

Industrial blue

Or according to your requirement

Flow Chart

Manual decoiler–feeding–hydraulic punching station–forming machine–hydraulic cutting–out table

Steel Scaffolding Plank Making Machine Purlin Roll Forming Machine

Steel Scaffolding Plank Making Machine Purlin Roll Forming MachineSteel Scaffolding Plank Making Machine Purlin Roll Forming MachineSteel Scaffolding Plank Making Machine Purlin Roll Forming MachineSteel Scaffolding Plank Making Machine Purlin Roll Forming MachineSteel Scaffolding Plank Making Machine Purlin Roll Forming Machine

 Steel Scaffolding Plank Making Machine Purlin Roll Forming Machine    Botou Kefa Roll Forming Machine Co., Ltd. is a manufacturer specializing in custom cold roll forming equipment and automatic production lines. We can manufacture hundred types roll forming machines,like Door frame machine,K type long span arching roof machine,automobile profile machine,Container house series machine,Steel silo series machine,Chicken cage series machine,Fence series machine,shelf series machine,highway guardrail series machine,coil leveling machine and all kinds of construction profiles.
    Engineers and technicians are rich in experience of designing,developing and manufacturing of machines to provide customers with customized designs. We pay close attention to new trend of technologies.Our products are sold to many countries and regions around the world, and we have established long-term cooperative relationships with customers.

1. Quality Control
A. Every parts of machine is examed carefully without any omit.
B. Welcome to our factory to check machine

2. Installation & Training
A. We supply video to teach buyer how to install and operate machine
B. Welcome customers come to our factory, we are glad to teach you face to face.
C. Our technicians could come to customers’ factory to install machine

3. After-sale service
A. One year warranty for parts and shipment of parts is free.
B. 24hours*365 days technical support online.

Steel Scaffolding Plank Making Machine Purlin Roll Forming Machine

Our machines are working throughout our country and overseas.Few of our reputed clients have in fact given us their repeat orders for their production expansion.

Steel Scaffolding Plank Making Machine Purlin Roll Forming Machine

Established in 2008 year,Kefa is a professional manufacturer specializing in the developing and manufacturing of cold roll forming machine,Silo Making Machine,Curve Profile Roll Forming Machine.
1.Construction Roll Form Machine:
Roof And Wall Panel,Floor & Roof Deck,Purlines,Elevators,Metal Building Beam,Metal Framework,Drywall Stud and Track,False Ceilings,Door & Window Frame,Door Skin,Shutter Door,C/Z/U/L Shaped Steel,Roof Flashings Roll,Arch Roof Panel,Container House
2.Automotive Roll Form Machine:
Carriage Panel,Bicycle/Motorbycle Wheel Rim,Tanker/Trailer Fender,Body Sides.
3.Agricultural Roll Form Machine:
Steel Silos,Greenhouse Pipe/Channels,Conveyor Cover,Layer Cage Frame,Vineyard Post,Corrugated Sheet Curver,
4.Industry Roll Form Machine:
Fence,Leveling/Slit & Cut to Length Line,sheet rolling bending,Cone rolling bending,Lock hoop,Pipe Arch Curve,Expansion Joint,Hand rail,Guard rail,pipe milling
5.Energy & Electricals
Solar Panels,Conduits,Light Fixtures,Pylons,Cable Trays,Cabinets,Box.
6.Logistics Roll Form Machine
Metal Containers,Upright,Shelving,Mezzanine Floors,Walkways,Scaffolding,Cold Rooms,Pallet Rack,
KEFA has been engaged in the metal roll forming industry for many years and devoted to developing some steel structure machines with a professional technology and reasonable price. In particular, we can provide professional service, high quality, through design and installation. At KEFA, our experience is our advantage.

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine’s warranty period is 12months,if the broken parts can’t be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
