easy, cost-effective installation. Multiple profiles are available with a variety of rib patterns. Each profile is offered
in a no-clip panel, or a clip-fastened panel to accommodate expansion and contraction.

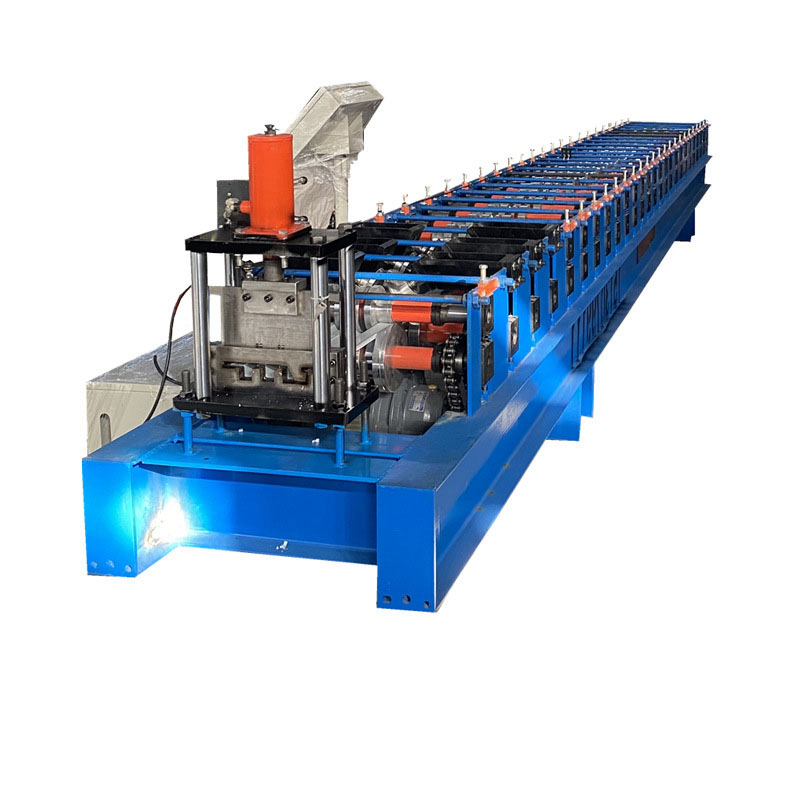

Advantages of shelf layer panel cold roll forming machine
1.The width be automatic adjusted by PLC.
2.shelf layer panel cold roll forming machine adopts memorial arch frame type,independent roller station make the machine more beautiful and stability.
3.All the rollers are through quench treatment ,CNC machine treatment twice and polished on the surface to guarantee the accuracy and long life.
4.we also have other type of shelf layer panel cold roll forming machine.It is with the whole adjusting system to change the sizes of the shelf panel. it no need to change the spacer one by one, just change the screw whole on the machine so that can adjust different sizes. this design is much convenient and quick than the changing spacer machine line.

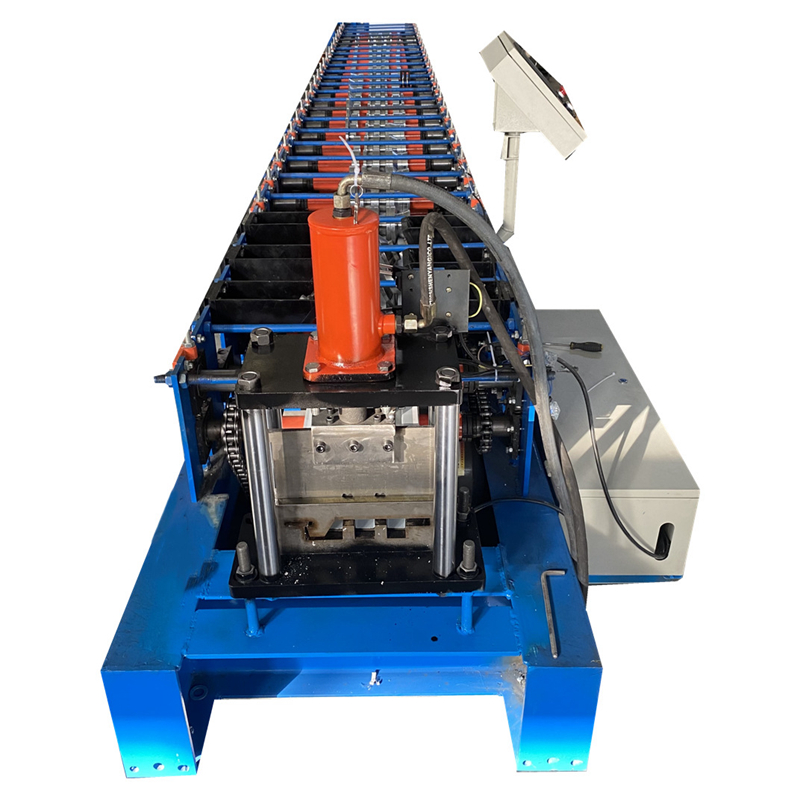

5.The cutting is hydraulic cutting, you can change different blades for different sizes of the shelf.
|
Decoiler :
|
Manual decoiler
|
* Hydraulic decoiler (Optional)
|
|
Forming station :
|
According to your profile drawings
|
* With straighten revise rollers
|
|
Main machine motor brand :
|
Shanghai Lichao (Famouse Brand)
|
* Siemens (Optional)
|
|
Driving system :
|
Chain drive or Gear drive
|
* Gearbox drive (Optional)
|
|
Machine structure:
|
Cantilever type
|
* Forged Iron station (Optional)
|
|
Forming speed :
|
10-20 (M/MIN)
|
* Or according to your profile drawings
|
|
Rolling Shaft:
|
40Cr Steel Material
|
* (Modulation, fine turning, fine grinding)
|
|
Rollers’ material :
|
CR12 Steel (Quenching, fine turning and grinding of inner holes and surfaces, Hard chrome)
|
* SKD-11 (Optional)
|
|
Cutting system :
|
Post-cutting
|
* Pre-cutting (Optional)
|
|
Frequency changer brand :
|
Yaskawa
|
* Siemens (Optional)
|
|
PLC brand :
|
Delta,Touch Screen
|
* Siemens (Optional)
|
|
Power supply :
|
380V 50Hz 3ph
|
* Or according to your requirment
|
|
Machine color :
|
Industrial blue
|
* Or according to your requirment
|
|
Runout Table:
|
Roller type,non-power
|
* Motorized,Drop off,auto stack(Optional)
|
2. Equipped with 2 groups nylon wheels in the middle of the platform, prevent the material surface from being damaged, and feed the material more easily and quickly
3. Can be With hand wheels to adjust the feeding size, more conveniently.
4. Optional With manual cutters to cut feed material more easily.
1.Rolling shaft :40Cr STEEL,Tempering treatment to prevent deformed and improve hardness,Shaft diameter: 75mm
2.Roller:Cr12 steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase service life.
GB-Cr12 with heat treatment Cutting length tolerance:±1mm/3m Cutting feature: Steady and safe working condition Oil tube and wiresconnection All the tubes and wires will be marked by the numbers or letters,So it will be very easy to connect for the unprofessional client.
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine’s warranty period is 12months,if the broken parts can’t be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
