Wheel rim roll former
Technical Parameter
KEFA is a market leading designer and a manufacturer of bicycle and motorcycle wheel rim making machines, which wins wide reputation for products with high efficiency, excellent reliability, easy maintenance andlong lifespan. We provides a complete bicycle and motorcycle wheel rim making solution, which includes bicycle/motorcycle rim making machine,Rim Butt Flash Welding Machine ,rim auto punching machine,rim polishing machine etc.Electric Bicycle Wheel Rim Making Machine
Electric Bicycle Wheel Rim Making MachineElectric Bicycle Wheel Rim Making Machine


Product Parameters

Decoiler :
Manual decoiler
* Hydraulic decoiler (Optional)
Forming station :
According to your profile drawings
Main machine motor brand :
Shanghai Lichao (Famouse  Brand)
* Siemens (Optional)
Driving system :
Chain drive or Gear drive
* Gearbox drive (Optional)
Machine structure:
Cantilever type
* Forged Iron station (Optional)
Forming speed :
10-20 (M/MIN)
* Or according to your profile drawings
Rollers’ material :
Cr12
* SKD-11 (Optional)
Cutting system :
Post-cutting
* Pre-cutting (Optional)
Frequency changer brand :
Yaskawa
* Siemens (Optional)
PLC brand :
Panasonic
* Siemens (Optional)
Power supply :
380V 50Hz 3ph
* Or according to your requirment
Machine color :
Industrial blue
* Or according to your requirment
Electric Bicycle Wheel Rim Making Machine
Standard Decoiler
De-Coiler is provided to load Raw material coil on its bridge& Hold the coil and also in loop area store the row material before in process. It will hold tighten sheet coil & decoiling for roofing line smoothly.

Entry Guides
1. With several support rollers, to feed the material more smoothly
2. Equipped with 2 groups nylon wheels in the middle of the platform, prevent the material surface from being damaged, and feed the material more easily and quickly 3. Can be With hand wheels to adjust the feeding size, more conveniently.
4. Optional With manual cutters to cut feed material more easily.

Electric Bicycle Wheel Rim Making Machine
Electric Bicycle Wheel Rim Making Machine

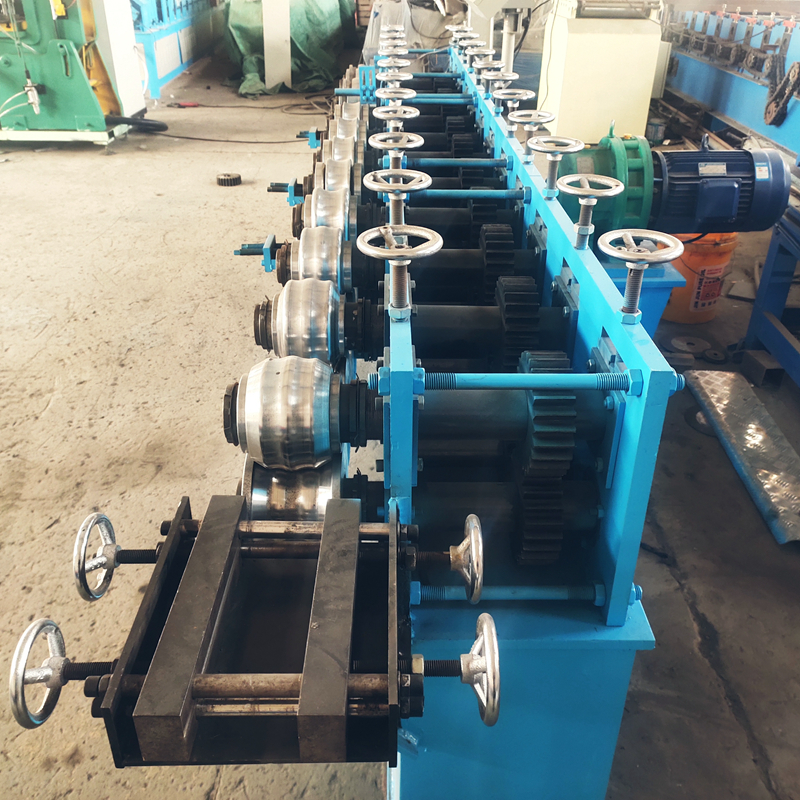

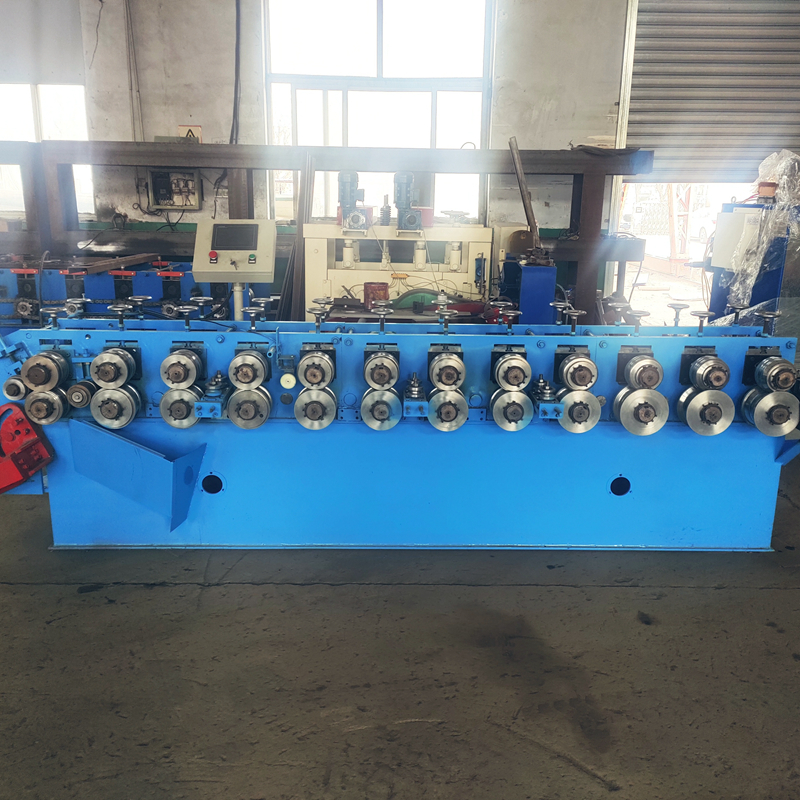

Roll Forming
Consist pairs of contoured roll tools. While the coil stock is passing through succession contoured rolls the material bends to its desired shape, after final shape is achieved profile straighter gives straightness to outgoing profile. 1.Rolling shaft :40Cr STEEL,Tempering treatment to prevent deformed and improve hardness,Shaft diameter: 75mm
2.Roller:Cr12 steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase service life.

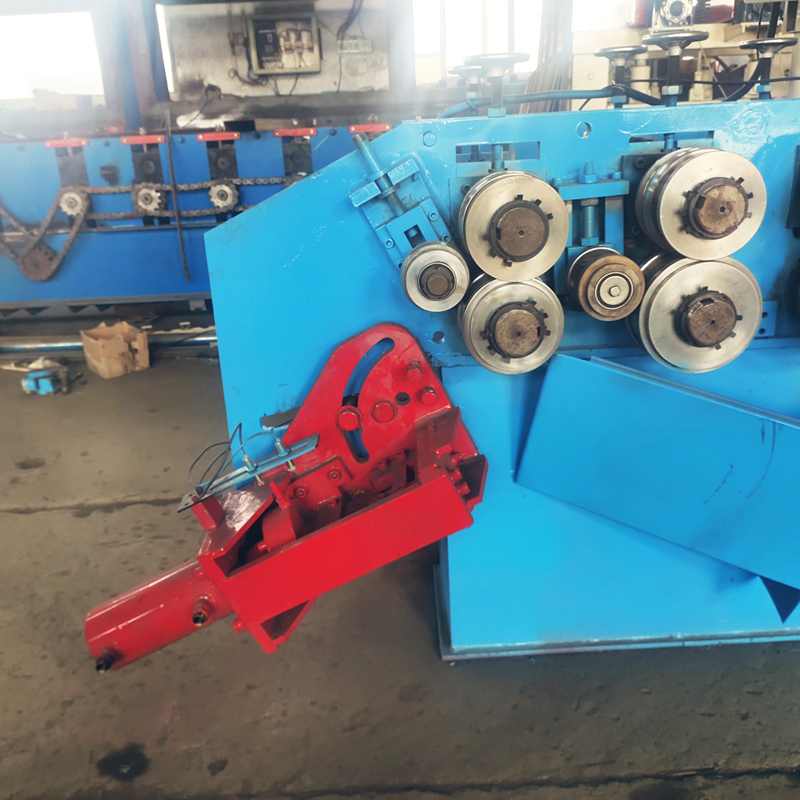

Auto Bending Roller
Diameter adjustabe

Electric Bicycle Wheel Rim Making Machine
Electric Bicycle Wheel Rim Making Machine
Hydraulic Cutting
Work type:Hydraulic cutting Driving method:By pillar type cylinder Cutting device structure:Guide pillar type Cutter material: GB-Cr12 with heat treatment Cutting length tolerance:±1mm/3m Cutting feature: Steady and safe working condition Oil tube and wires connection All the tubes and wires will be marked by the numbers or letters,So it will be very easy to connect for the unprofessional client.

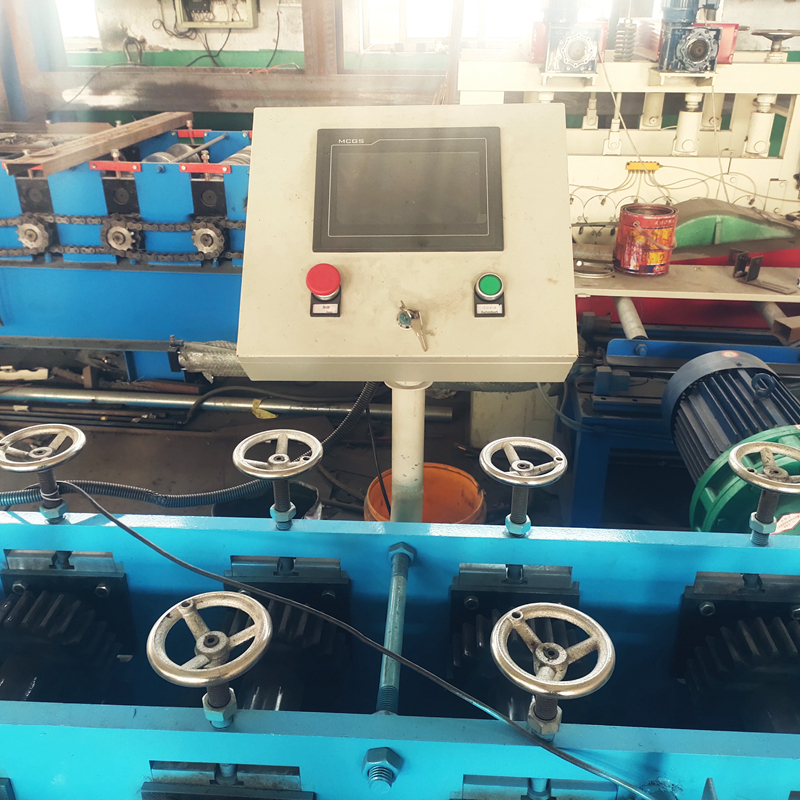

PLC & CONTROL PANELS
Frequency brand:Delta,PLC brand:Delta Screen type:Touch screen, also have buttons on the panel Screen language:English/Chinese/Spanish Low pressure electric part:Schneide brand Encode:Omron brand Remark:Support multi orders input,ensure the machine can work continuously according to different request without stop. All the electrical parts are branded with high quality, it can be fixed easily if damaged.

Electric Bicycle Wheel Rim Making Machine


Detailed Photos

Electric Bicycle Wheel Rim Making Machine
Electric Bicycle Wheel Rim Making Machine
Electric Bicycle Wheel Rim Making Machine

Cycle Rim Roll Forming Machine                        Cycle Rim Roll Forming Machine               Cycle Rim Roll Forming Machine

Electric Bicycle Wheel Rim Making Machine
Electric Bicycle Wheel Rim Making Machine
Electric Bicycle Wheel Rim Making Machine

Punch Press,PLC Auto Control Hole Quantity Modes         Cycle Rim Roll Forming Machine                     Flush Butt Welding Machine

Electric Bicycle Wheel Rim Making Machine

Other product links

Electric Bicycle Wheel Rim Making Machine

Company Profile

Electric Bicycle Wheel Rim Making Machine

Certifications

Electric Bicycle Wheel Rim Making Machine

Packaging & Shipping

Electric Bicycle Wheel Rim Making Machine

FAQ

1.How to maintain the machine?

Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine’s warranty period is 12months,if the broken parts can’t be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
